Vacuum control-Engine bearing for BMW 5 Series F11 LCI 525d (2013)

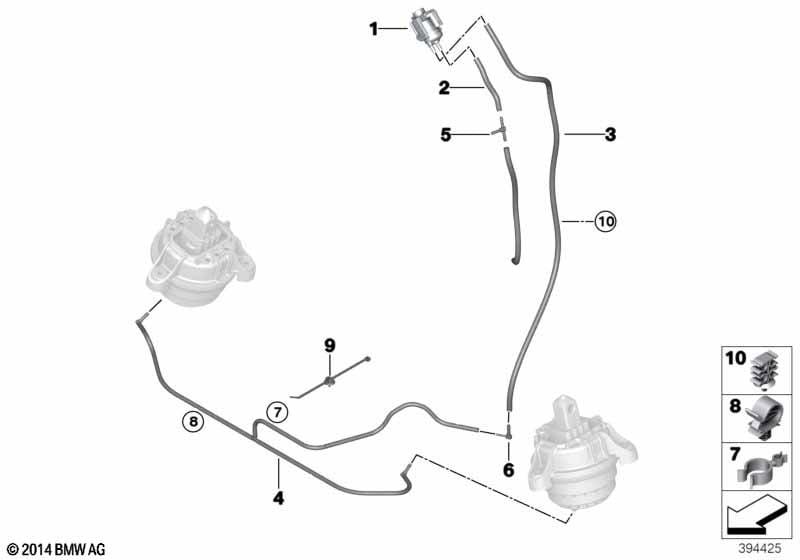

This Vacuum control-Engine bearing technical drawing provides a detailed breakdown of the assembly for the 5 Series F11 LCI 525d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2013.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Electr.valve | 1 | 11747810831 | $46.70 | Shop at ECS Tuning | |||||
| 02 | Vacuum hose black | 3,5X2,0 | X | 11747797129 | $17.14 | Shop at ECS Tuning | ||||
| 03 | Vacuum hose red | 3,5X2,0 | X | 11657796857 | $16.43 | Shop at ECS Tuning | ||||
| 10 | Clip | 1 | 12521437136 | $0.63 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series F11 LCI 525d Vacuum control-Engine bearing?
- This technical diagram illustrates the Vacuum control-Engine bearing within the Engine and Transmission Suspension group for the 5 Series F11 LCI 525d produced during 2013. It provides a detailed exploded view of the components, identifying key parts such as the Electr.valve (Part #11747810831).
- Which models use the hardware listed in this Vacuum control-Engine bearing?
- The hardware and components featured in the Vacuum control-Engine bearing are specific to the 5 Series F11 LCI 525d produced during 2013. These technical specifications ensure that parts like the Electr.valve (11747810831) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Vacuum control-Engine bearing assembly?
- Each item in the Vacuum control-Engine bearing corresponds to the numbered list below the illustration. For the 5 Series F11 LCI 525d, you can identify the Electr.valve by locating its position on the schematic, which then links to the official BMW part number 11747810831 for the Engine and Transmission Suspension section.
