Getrag 265/6 case cover/speedo drive for BMW 5 Series E12 528i (1980)

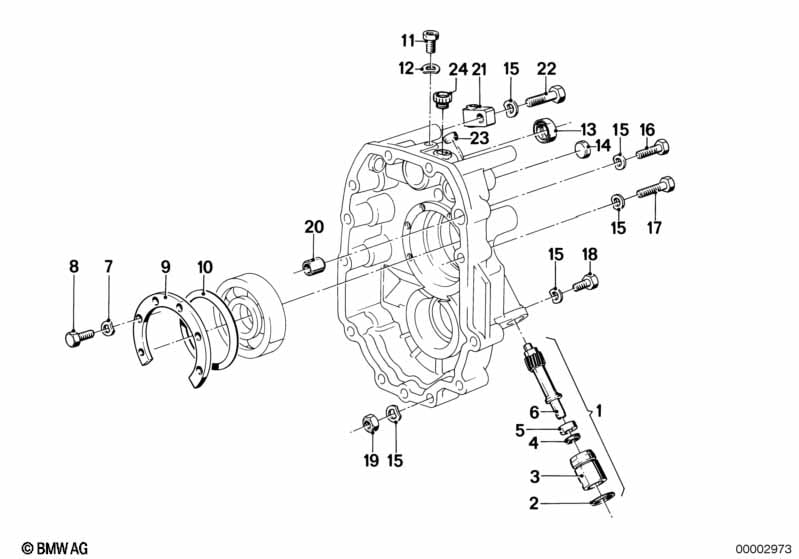

This Getrag 265/6 case cover/speedo drive technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1980.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Speedometer drive | 1 | 23211207772 | $149.91 | ENDED | Shop at ECS Tuning | ||||
| 02 | O-ring | 19,5X3 | 1 | 11431740045 | $1.81 | Shop at ECS Tuning | ||||
| 03 | Adaptor | 1 | 23211202751 | $88.92 | ENDED | Shop at ECS Tuning | ||||
| 04 | Shaft seal | 8X14X6 | 1 | 23121490192 | $14.05 | Shop at ECS Tuning | ||||
| 05 | Bush | 1 | 23121630176 | $1.21 | ENDED | Shop at ECS Tuning | ||||
| 06 | Speedometer drive | 1 | 23221200416 | $105.44 | Shop at ECS Tuning | |||||
| 07 | Spring washer Black | B6-ZN | 2 | 07119932073 | $0.38 | Shop at ECS Tuning | ||||
| 08 | Hex bolt | M6X22-8.8-ZNS3 | 2 | 07119904505 | $0.38 | Shop at ECS Tuning | ||||
| 09 | Supporting ring | 1 | 23121209317 | $19.20 | ENDED | Shop at ECS Tuning | ||||
| 10 | Shim | 100X72,1X0,3 | X | 23121209577 | $2.07 | Shop at ECS Tuning | ||||
| 10 | Shim | 100X72,1X0,2 | X | 23121209578 | $2.08 | ENDED | Shop at ECS Tuning | |||
| 11 | Fillister-head screw | M8X12 | 1 | 07119919724 | $5.24 | ENDED | Shop at ECS Tuning | |||
| 12 | Wave washer | 8,4X15-ZNS3 | 1 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 13 | Shaft seal | 15X21X5 | 1 | 23128677736 | Shop at ECS Tuning | |||||
| 14 | Cover lid | D=17MM | 2 | 07119937248 | $0.44 | Shop at ECS Tuning | ||||
| 15 | Wave washer | 8,4X15-ZNS3 | X | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 16 | Hex bolt | M8X50 | 4 | 07119904533 | $2.84 | Shop at ECS Tuning | ||||
| 17 | Hex bolt | M8X55-8.8 | 8 | 07119902957 | $5.27 | Shop at ECS Tuning | ||||
| 18 | Hex bolt | M8X20 | 1 | 23211207159 | $2.75 | Shop at ECS Tuning | ||||
| 19 | Hex nut | M8-8-ZNNIV SI | 8 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 20 | Dowel | 1 | 23121209318 | $7.03 | ENDED | Shop at ECS Tuning | ||||
| 21 | Supporting bracket | 2 | 25111202842 | $20.64 | Shop at ECS Tuning | |||||
| 22 | Hex bolt | M8X40-ZNNIV SI | 2 | 07119905549 | $1.05 | Shop at ECS Tuning | ||||
| 23 | Cover lid | D=12MM | 1 | 07119906393 | Shop at ECS Tuning | |||||
| 24 | Ventilation valve | 1 | 23111224051 | $10.14 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
