Gearshift automatic transmission for BMW 7 Series E32 750iL (1988)

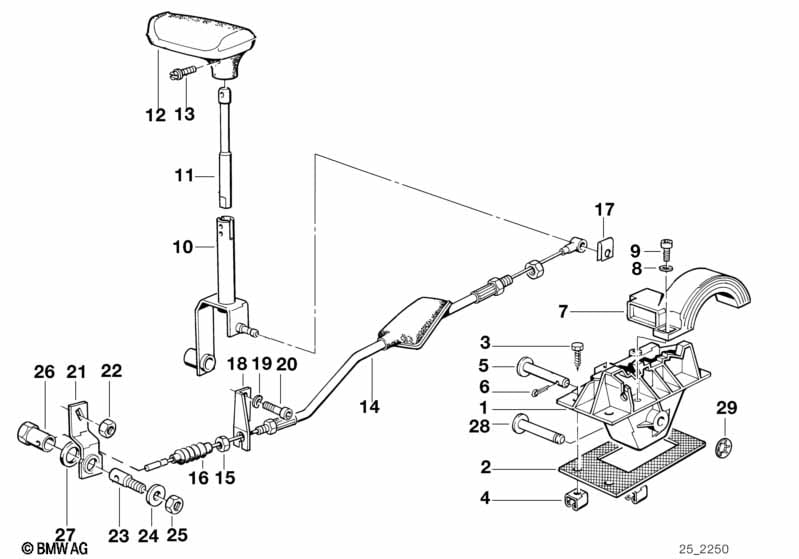

This Gearshift automatic transmission technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 750iL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1988.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Supporting bracket | 1 | 25161218388 | $64.88 | Shop at ECS Tuning | |||||
| 02 | Sound insulation | 1 | 25161215581 | $26.90 | Shop at ECS Tuning | |||||
| 03 | Hex head screw | ST6,3X22-C-Z1 | 3 | 07119916969 | $0.29 | ENDED | Shop at ECS Tuning | |||
| 04 | Prestol-cage | ST6,3-ZNS | 3 | 07129901748 | $0.25 | ENDED | Shop at ECS Tuning | |||
| 04 | Body nut | ST 6,3 - 9 | 3 | 07129904216 | $0.25 | Shop at ECS Tuning | ||||
| 05 | Pin | B10F8X60-ST | 1 | 05/1990 | 07119953115 | $4.72 | Shop at ECS Tuning | |||
| 06 | Split pin | 3,2X18 | 1 | 05/1990 | 07119945193 | $0.09 | Shop at ECS Tuning | |||
| 07 | Switch gearbox | 1 | 09/1992 | 25161219149 | $73.03 | Shop at ECS Tuning | ||||
| For vehicles with Gulf version |
L822A=Yes |
|||||||||
| 07 | Switch gearbox | 1 | 25161219149 | $73.03 | Shop at ECS Tuning | |||||
| For vehicles with National version Australia |
L810A=Yes |
|||||||||
| 07 | Switch gearbox | 1 | 25161219150 | $70.57 | Shop at ECS Tuning | |||||
| 09 | Fillister-head screw | M6X16 | 2 | 25161216747 | $0.75 | Shop at ECS Tuning | ||||
| 10 | Shift lever-upper part | 1 | 25161216206 | $91.80 | Shop at ECS Tuning | |||||
| 11 | Pull rod | L=121MM | 1 | 25161219755 | $8.90 | Shop at ECS Tuning | ||||
| 12 | Selector-lever grip, leather | SCHWARZ | 1 | 25161216464 | $233.95 | +core | Shop at ECS Tuning | |||
| 12 | Buffalo selector lever handle | HAVANNA | 1 | 25161216995 | $161.82 | ENDED | Shop at ECS Tuning | |||
| 12 | Buffalo selector lever handle | SIAMGRAU | 1 | 25161217417 | $161.82 | ENDED | Shop at ECS Tuning | |||
| 12 | Buffalo selector lever handle | ANTHRAZIT | 1 | 25161219771 | $161.82 | ENDED | Shop at ECS Tuning | |||
| 12 | Buffalo selector lever handle | BRASIL | 1 | 25161219777 | $161.82 | ENDED | Shop at ECS Tuning | |||
| 12 | Selector lever handle,wood nussb.-wurzel | HOCHGL./91 | 1 | 25161421590 | $171.95 | +core | Shop at ECS Tuning | |||
| 13 | Fillister-head screw | M4X8 | 1 | 25161215780 | $0.55 | Shop at ECS Tuning | ||||
| 14 | Cable noise absorbing | 1 | 25161218350 | $31.33 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Support noise absorbing | ZF | 1 | 24511218351 | $32.71 | ENDED | Shop at ECS Tuning | |||
| 15 | Hex nut | M8X1 | 1 | 25161215346 | $7.07 | ENDED | Shop at ECS Tuning | |||
| 16 | Cup | 1 | 25161216241 | $7.25 | Shop at ECS Tuning | |||||
| 17 | Circlip | 4,0 | 1 | 03/1993 | 07119932822 | $0.09 | Shop at ECS Tuning | |||
| 18 | Support noise absorbing | ZF | 1 | 24511218351 | $32.71 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Cable noise absorbing | 1 | 25161218350 | $31.33 | Shop at ECS Tuning | |||||
| 19 | Fillister-head screw | M6X16 | 1 | 07119902631 | $0.62 | Shop at ECS Tuning | ||||
| 21 | Selector lever | ZF | 1 | 24511216211 | $10.32 | Shop at ECS Tuning | ||||
| 22 | Self-locking hex nut | M8X1 | 1 | 24517542700 | $0.27 | Shop at ECS Tuning | ||||
| 23 | Pin | 1 | 25161215111 | $11.80 | Shop at ECS Tuning | |||||
| 24 | Washer | 8,4X16X1,6-ZNNV | 1 | 07119907030 | Shop at ECS Tuning | |||||
| 25 | Hex nut | M8-8-ZNNIV SI | 1 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 26 | Bush | 1 | 25161215109 | $3.85 | Shop at ECS Tuning | |||||
| 27 | Shim | 13X19X0,5 | 1 | 07119932641 | $0.11 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
