Drive shaft, single components, 4-wheel for BMW 3 Series E30 325ix (1987)

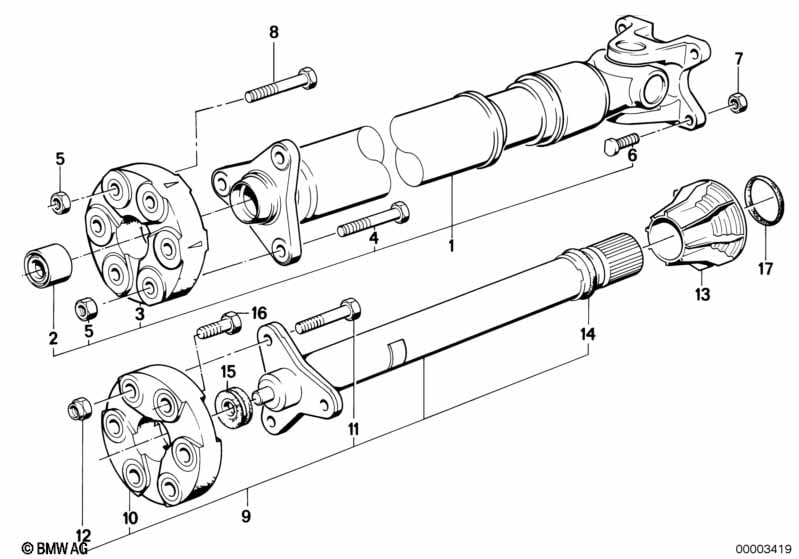

This Drive shaft, single components, 4-wheel technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325ix. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Drive Shaft | 1 | 26111225684 | $736.92 | Shop at ECS Tuning | |||||
| only applies to | ||||||||||
| -- | Drive shaft front | L=648MM | X | 26201226183 | $423.67 | +core | Shop at ECS Tuning | |||
| 02 | Centering sleeve | 1 | 26117526611 | $11.32 | Shop at ECS Tuning | |||||
| 03 | Universal joint | LK=78MM/D=110MM | 1 | 26111225624 | $92.56 | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| -- | Drive shaft front | L=648MM | X | 26201226183 | $423.67 | +core | Shop at ECS Tuning | |||
| LK = bolt hole | ||||||||||
| 04 | Hex bolt | M10X50-10.9 | 6 | 26117526705 | $1.77 | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| -- | Drive shaft front | L=648MM | X | 26201226183 | $423.67 | +core | Shop at ECS Tuning | |||
| 05 | Self-locking hex nut | M10 | 6 | 07129964672 | $0.36 | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| -- | Drive shaft front | L=648MM | X | 26201226183 | $423.67 | +core | Shop at ECS Tuning | |||
| 06 | Knurled bolt | M10X25 | 4 | 26111206718 | $2.18 | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| -- | Drive shaft front | L=648MM | X | 26201226183 | $423.67 | +core | Shop at ECS Tuning | |||
| 07 | Self-locking hex nut | M10 | 4 | 07129964672 | $0.36 | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| -- | Drive shaft front | L=648MM | X | 26201226183 | $423.67 | +core | Shop at ECS Tuning | |||
| 08 | Hex bolt | M10X50-10.9 | 3 | 26117526705 | $1.77 | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| -- | Drive shaft front | L=648MM | X | 26201226183 | $423.67 | +core | Shop at ECS Tuning | |||
| 09 | Drive shaft front | L=648MM | 1 | 26201226183 | $423.67 | +core | Shop at ECS Tuning | |||
| 10 | Universal joint | LK=78MM/10 | 1 | 26201701094 | $57.29 | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| -- | Drive shaft front | L=648MM | X | 26201226183 | $423.67 | +core | Shop at ECS Tuning | |||
| 11 | Hex bolt | M10X42 | 3 | 26111204215 | $2.02 | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| -- | Drive shaft front | L=648MM | X | 26201226183 | $423.67 | +core | Shop at ECS Tuning | |||
| 12 | Self-locking hex nut | M10 | 3 | 07129964672 | $0.36 | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| -- | Drive shaft front | L=648MM | X | 26201226183 | $423.67 | +core | Shop at ECS Tuning | |||
| 13 | Covering cap | 1 | 26201226007 | $6.55 | Shop at ECS Tuning | |||||
| only applies to | ||||||||||
| -- | Drive shaft front | L=648MM | X | 26201226183 | $423.67 | +core | Shop at ECS Tuning | |||
| 14 | O-ring | 1 | 26201225676 | $1.39 | Shop at ECS Tuning | |||||
| only applies to | ||||||||||
| -- | Drive shaft front | L=648MM | X | 26201226183 | $423.67 | +core | Shop at ECS Tuning | |||
| 15 | Ring cover | 1 | 26201225981 | $1.20 | Shop at ECS Tuning | |||||
| only applies to | ||||||||||
| -- | Drive shaft front | L=648MM | X | 26201226183 | $423.67 | +core | Shop at ECS Tuning | |||
| 16 | Hex bolt | M10X32 | 3 | 26201226104 | $1.66 | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| -- | Drive shaft front | L=648MM | X | 26201226183 | $423.67 | +core | Shop at ECS Tuning | |||
| 17 | Gasket ring | 38X3 | 1 | 26201701106 | $0.61 | ENDED | Shop at ECS Tuning | |||
| only applies to | ||||||||||
| -- | Drive shaft front | L=648MM | X | 26201226183 | $423.67 | +core | Shop at ECS Tuning | |||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
