Drive shaft,univ.joint/center mounting for BMW 3 Series E92 LCI 320i (2010)

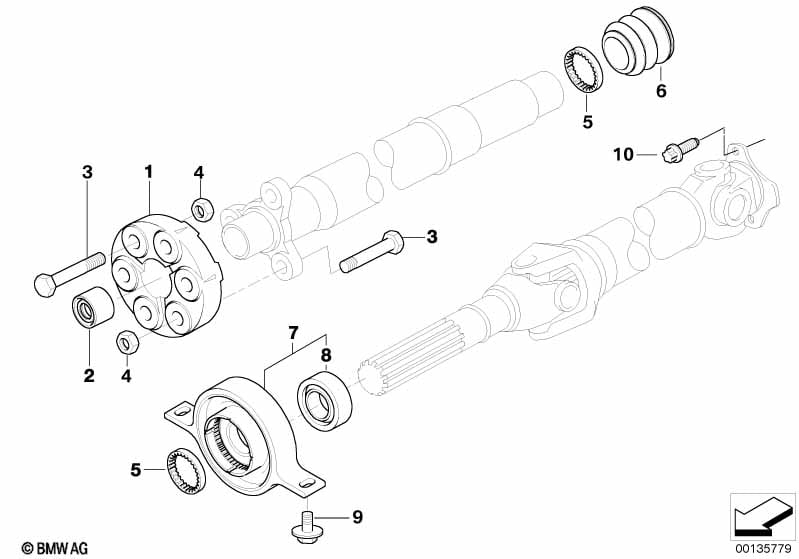

This Drive shaft,univ.joint/center mounting technical drawing provides a detailed breakdown of the assembly for the 3 Series E92 LCI 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Universal joint | LK=78MM/D=110MM | 1 | 26111225624 | $92.56 | Shop at ECS Tuning | ||||
| LK = bolt hole | ||||||||||
| For vehicles with Automatic transmission |
S205A=Yes |
|||||||||
| 01 | Universal joint | LK=96MM/12 | 1 | 26117511454 | $120.93 | Shop at ECS Tuning | ||||
| LK = bolt hole | ||||||||||
| 02 | Centering sleeve | 1 | 26117526611 | $11.32 | Shop at ECS Tuning | |||||
| 03 | Hex bolt | M10X50-10.9 | 6 | 26117526705 | $1.77 | Shop at ECS Tuning | ||||
| For vehicles with Automatic transmission |
S205A=Yes |
|||||||||
| 03 | Hex bolt | M12X1,5X58-ZNS3 | 6 | 26117523709 | $2.73 | Shop at ECS Tuning | ||||
| Bolt on transmission | ||||||||||
| 04 | Self-locking hex nut | M10 | 6 | 08/2012 | 07129964672 | $0.36 | Shop at ECS Tuning | |||
| 04 | Self-locking hex nut | M12X1,5-10-ZNS3 | 6 | 26127536563 | $1.00 | Shop at ECS Tuning | ||||
| 05 | Damper ring | D=34/D=30 | 2 | 26117527519 | $1.77 | Shop at ECS Tuning | ||||
| 06 | Rubber boot, center bearing | 1 | 26117526627 | $4.82 | Shop at ECS Tuning | |||||
| 07 | Center Mount, aluminium | 1 | 26128615621 | Shop at ECS Tuning | ||||||
| 09 | Hex bolt with washer | M8X22-8.8-ZNS3 | 2 | 22326760945 | $1.08 | Shop at ECS Tuning | ||||
| 10 | Torx screw with ribs | M10X23-10-ZNS3 | 4 | 26117571956 | $0.73 | Shop at ECS Tuning | ||||
