Single parts f transfer case NV 124 for BMW 3 Series E46 330xd (2004)

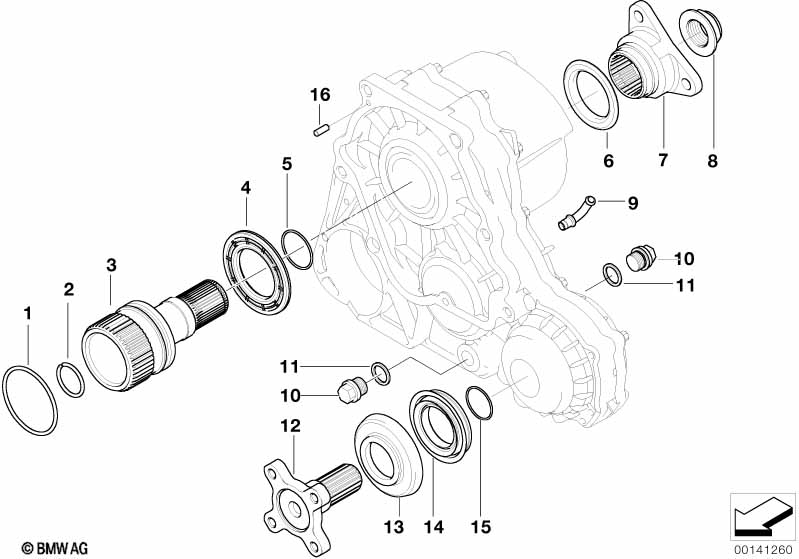

This Single parts f transfer case NV 124 technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 330xd. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Manual Transmission |
=Yes |
|||||||||
| 01 | O-ring | 60,4X3,5 | 1 | 27107542833 | $8.45 | Shop at ECS Tuning | ||||
| 02 | Snap ring | 1 | 27107546690 | $6.11 | Shop at ECS Tuning | |||||
| 03 | Adapter shaft | 1 | 27107525789 | $490.00 | +core | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | O-ring | 39,0X2,25 | 1 | 27107536962 | $3.75 | Shop at ECS Tuning | ||||
| 04 | Shaft seal | 1 | 27107531661 | $32.73 | ENDED | Shop at ECS Tuning | ||||
| 05 | O-ring | 39,0X2,25 | 1 | 27107536962 | $3.75 | Shop at ECS Tuning | ||||
| 06 | Shaft seal | 1 | 27127531519 | $32.73 | Shop at ECS Tuning | |||||
| 07 | Output flange, rear | 1 | 27127531524 | $229.71 | +core | Shop at ECS Tuning | ||||
| 08 | Flange nut | 1 | 27127531522 | $9.95 | Shop at ECS Tuning | |||||
| 09 | Vent pipe | 1 | 27107535826 | $5.57 | Shop at ECS Tuning | |||||
| 10 | Screw plug | M18X1,5 | 2 | 27111226467 | $8.39 | Shop at ECS Tuning | ||||
| 11 | Gasket ring | A18X22-CU | 2 | 07119963308 | $0.25 | Shop at ECS Tuning | ||||
| 12 | Output flange, front | 1 | 27147531525 | $188.11 | +core | Shop at ECS Tuning | ||||
| 13 | Dustcover plate | 1 | 27147531521 | $7.84 | Shop at ECS Tuning | |||||
| 14 | Shaft seal | 1 | 27147531520 | $32.73 | Shop at ECS Tuning | |||||
| 15 | O-ring | 33,04X1,77 | 1 | 27107535827 | $1.73 | ENDED | Shop at ECS Tuning | |||
| 16 | Dowel pin | 6M6X16 | 1 | 24101219418 | $1.38 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 330xd Single parts f transfer case NV 124?
- This technical diagram illustrates the Single parts f transfer case NV 124 within the Transfer box / e-vehicle transmission group for the 3 Series E46 330xd produced during 2004. It provides a detailed exploded view of the components, identifying key parts such as the O-ring (Part #27107542833).
- Which models use the hardware listed in this Single parts f transfer case NV 124?
- The hardware and components featured in the Single parts f transfer case NV 124 are specific to the 3 Series E46 330xd produced during 2004. These technical specifications ensure that parts like the O-ring (27107542833) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Single parts f transfer case NV 124 assembly?
- Each item in the Single parts f transfer case NV 124 corresponds to the numbered list below the illustration. For the 3 Series E46 330xd, you can identify the O-ring by locating its position on the schematic, which then links to the official BMW part number 27107542833 for the Transfer box / e-vehicle transmission section.
