Frnt axle support,wishbone/tension strut for BMW 5 Series E60 525xi (2006)

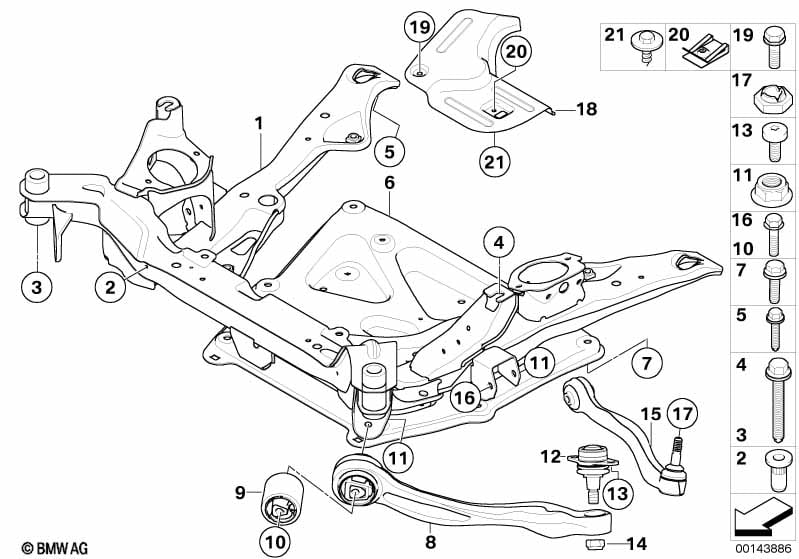

This Frnt axle support,wishbone/tension strut technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 525xi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2006.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Front axle support | 1 | 03/2007 | 31106777362 | $730.16 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Cover, wheel suspension left | 1 | 03/2007 | 51717184554 | $7.03 | ENDED | Shop at ECS Tuning | |||
| Note Repair Manual | ||||||||||
| -- | Blind rivet nut, flat headed | M6 | 11 | 03/2007 | 17117571134 | $1.10 | Shop at ECS Tuning | |||
| Note Repair Manual | ||||||||||
| 02 | Blind rivet nut, flat headed | M6 | 11 | 17117571134 | $1.10 | Shop at ECS Tuning | ||||
| 03 | Hexagon screw with flange | M12X1,5X95-ZNS3 | 2 | 31106760222 | $2.81 | Shop at ECS Tuning | ||||
| 04 | Hexagon screw with flange | M12X1,5X95-ZNS3 | 2 | 31106760222 | $2.81 | Shop at ECS Tuning | ||||
| 05 | Hexagon screw with flange | M12X1,5X65-10.9 | 2 | 31106770256 | $2.56 | Shop at ECS Tuning | ||||
| 06 | Reinforcement plate | 1 | 31106768301 | $104.79 | +core | Shop at ECS Tuning | ||||
| 07 | Hexagon screw with flange | M10X35-10.9ZNS3 | 6 | 31106772199 | $1.61 | Shop at ECS Tuning | ||||
| 08 | Tension strut with rubber mounting, left | 1 | 31106770685 | $244.62 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| 08 | Tension strut with rubber mounting, rght | 1 | 31106770686 | $244.62 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Self-locking collar nut | M12X1,5-10 ZNS3 | 1 | 33326760668 | $0.62 | Shop at ECS Tuning | ||||
| -- | Combination nut | M14X1,5-10ZNNIV | 1 | 33306787062 | $1.88 | Shop at ECS Tuning | ||||
| -- | Hex bolt | M12X1,5X100 | 1 | 07119902742 | $13.51 | Shop at ECS Tuning | ||||
| 09 | Hydrobearing | 2 | 31126768302 | +core | Shop at ECS Tuning | |||||
| 09 | Set rubber mounting f pull rod | 1 | 31120406872 | $77.95 | ENDED | Shop at ECS Tuning | ||||
| Important! REPLACED BY SINGLE PARTS. |
||||||||||
| 10 | Hex bolt | M12X1,5X100 | 2 | 07119902742 | $13.51 | Shop at ECS Tuning | ||||
| 11 | Self-locking collar nut | M12X1,5-10 ZNS3 | 4 | 33326760668 | $0.62 | Shop at ECS Tuning | ||||
| 12 | Wheel suspension joint | 2 | 31126779840 | $61.13 | Shop at ECS Tuning | |||||
| 13 | Flanged cap screw | M10X1,5X20-10.9 | 4 | 31106766780 | $1.47 | Shop at ECS Tuning | ||||
| 14 | Combination nut | M14X1,5-10ZNNIV | 2 | 33306787062 | $1.88 | Shop at ECS Tuning | ||||
| 15 | Repair kit, wishbone, left | VALUE PARTS | 1 | 31122347981 | Shop at ECS Tuning | |||||
| Fastening parts enclosed | ||||||||||
| 15 | Repair kit, wishbone, right | VALUE PARTS | 1 | 31122347982 | Shop at ECS Tuning | |||||
| Fastening parts enclosed | ||||||||||
| 16 | Hex bolt | 12X1,5X75-10.9 | 2 | 07119905302 | $4.18 | Shop at ECS Tuning | ||||
| 17 | Self-locking hex nut | M14X1,5-10.9 | 2 | 31106768936 | $2.87 | Shop at ECS Tuning | ||||
| 18 | Heat resistant plate | 1 | 31146768999 | $13.60 | Shop at ECS Tuning | |||||
| 19 | Hex bolt with washer | M6X20 | 1 | 07119904527 | $0.44 | Shop at ECS Tuning | ||||
| 20 | C-clip nut, self-locking | ST 4.8 -ZNS3 | 1 | 07147154447 | $0.27 | Shop at ECS Tuning | ||||
| 21 | Hex head screw with washer | ST4,8X16MM | 1 | 07147129160 | $0.36 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
