Steering column man.adjust./Mount. parts for BMW 5 Series F10 LCI 525dX (2013)

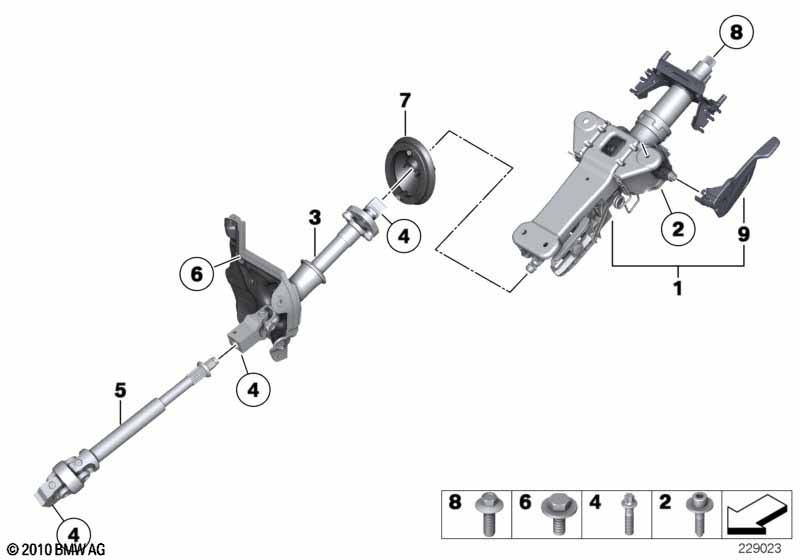

This Steering column man.adjust./Mount. parts technical drawing provides a detailed breakdown of the assembly for the 5 Series F10 LCI 525dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2013.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Manually adjust. steering column | 1 | 32306795343 | Shop at ECS Tuning | ||||||
| 02 | Fillister head with washer | 4 | 32306766052 | $0.75 | Shop at ECS Tuning | |||||
| 03 | Lower joint assy | 1 | 32306778135 | Shop at ECS Tuning | ||||||
| 04 | Torx bolt | M8X33 | 3 | 32306778609 | $0.67 | Shop at ECS Tuning | ||||
| 05 | Swivel joint | 1 | 32306859833 | Shop at ECS Tuning | ||||||
| 06 | Hex bolt with washer | M6X16-U2-ZNS3 | 4 | 07119902913 | Shop at ECS Tuning | |||||
| 07 | Cup | 1 | 32306778137 | Shop at ECS Tuning | ||||||
| 08 | Hex bolt | M12 | 1 | 04/2014 | 32311159951 | $3.42 | Shop at ECS Tuning | |||
| 09 | Adjust-lever | 1 | 32306795462 | Shop at ECS Tuning |
