Hydro steering-oil pipes for BMW 5 Series E39 525d (2001)

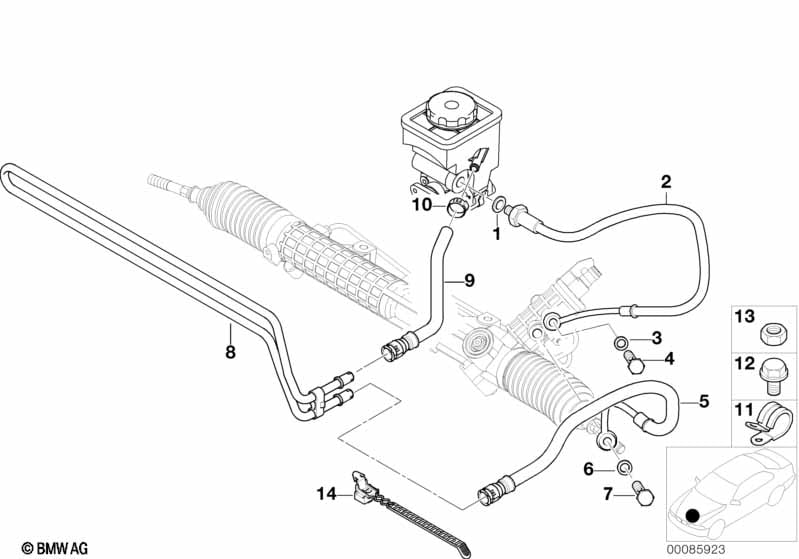

This Hydro steering-oil pipes technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Gasket ring | D=7,65MM | 1 | 64508390601 | $1.93 | Shop at ECS Tuning | ||||
| 02 | Pressure hose assy | 1 | 32416765300 | +core | Shop at ECS Tuning | |||||
| 03 | Gasket ring | A14X20-CUSN | 2 | 32411093596 | $0.31 | Shop at ECS Tuning | ||||
| 04 | Banjo bolt with check valve | M14X1,5X27,4 | 1 | 32416781261 | $10.02 | Shop at ECS Tuning | ||||
| 05 | Return pipe | 1 | 32411096051 | Shop at ECS Tuning | ||||||
| 06 | Gasket ring | A16X22-CUSN | 2 | 32411093597 | $0.27 | Shop at ECS Tuning | ||||
| 07 | Hollow bolt | M16X28 | 1 | 32416852470 | Shop at ECS Tuning | |||||
| 08 | Cooling coil | 1 | 17212247361 | Shop at ECS Tuning | ||||||
| 09 | radiator return line | 1 | 32411096052 | ENDED, +core | Shop at ECS Tuning | |||||
| 10 | Hose clamp | D=16,6-20MM | 1 | 16121180242 | $1.08 | Shop at ECS Tuning |
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
