Brake pipe rear ABS/ASC+T for BMW 3 Series E36 323ti (1998)

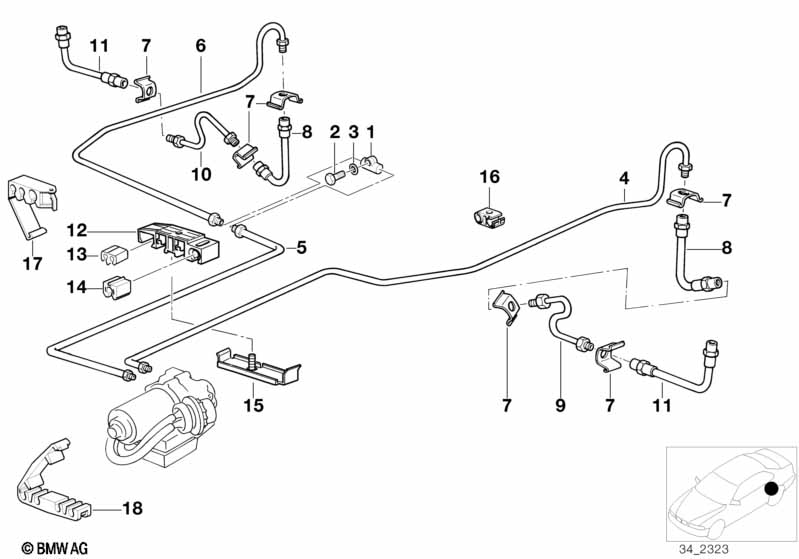

This Brake pipe rear ABS/ASC+T technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 323ti. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Intermediate piece | M10X1 | 1 | 34321160028 | $7.23 | Shop at ECS Tuning | ||||
| 02 | Hex bolt | M6X25 | 1 | 07119913589 | $0.62 | Shop at ECS Tuning | ||||
| 03 | Washer | 5.3-140 HV-ZNS | 1 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 04 | Pipe | M10/M12-3608MM | 1 | 34306755789 | Shop at ECS Tuning | |||||
| 04 | Pipe | M10/M12-3370MM | 1 | 34306755778 | Shop at ECS Tuning | |||||
| 05 | Pipe | M10/M10-3240MM | 1 | 34306755779 | Shop at ECS Tuning | |||||
| 05 | Pipe | M10/M10-3275MM | 1 | 34326755693 | $11.27 | ENDED | Shop at ECS Tuning | |||
| 06 | Pipe | M10/M10-400MM | 1 | 34326755569 | $8.50 | Shop at ECS Tuning | ||||
| 07 | Clip | 6 | 34341163565 | $0.97 | Shop at ECS Tuning | |||||
| 08 | Brake hose rear | L=222MM | 2 | 34321159878 | $38.29 | Shop at ECS Tuning | ||||
| 09 | Pipe | M10/M10-780MM | 1 | 34326755592 | $8.65 | Shop at ECS Tuning | ||||
| 10 | Pipe | M10/M10-780MM | 1 | 34326755592 | $8.65 | Shop at ECS Tuning | ||||
| 11 | Brake hose rear | L=200MM | 2 | 34321159881 | $30.11 | Shop at ECS Tuning | ||||
| 16 | Brake pipe bracket | 3 | 34326880898 | Shop at ECS Tuning | ||||||
| 17 | Bracket for brake/fuel line, 3-section | 2 | 34306779773 | $1.22 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
