Folding top compartment for BMW 3 Series E30 318i (1991)

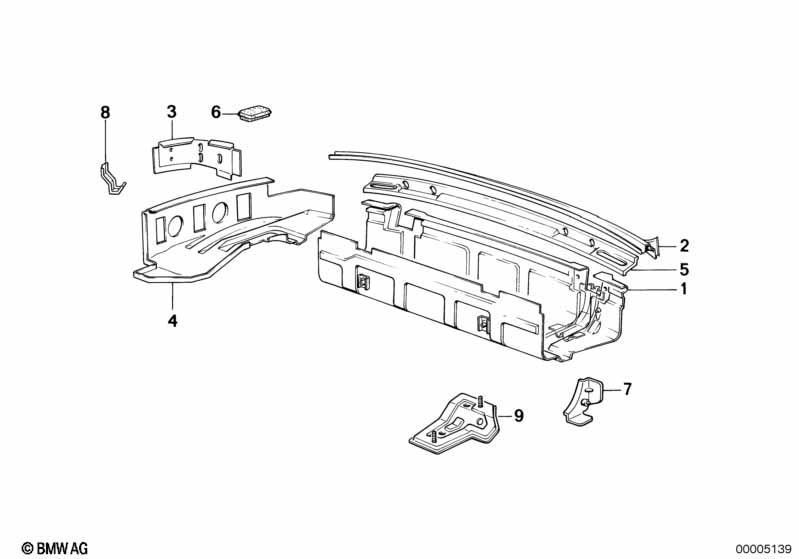

This Folding top compartment technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1991.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Folding top compartment, center | 1 | 41138121190 | $351.54 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with EH Folding top |
=Yes |
|||||||||
| 01 | Folding top compartment, center | 1 | 41132238256 | $475.42 | ENDED | Shop at ECS Tuning | ||||
| 02 | Rear window frame bottom part | 1 | 41328106831 | $49.52 | Shop at ECS Tuning | |||||
| 03 | Reinforcement left | 1 | 41131935659 | $12.50 | ENDED | Shop at ECS Tuning | ||||
| 03 | Reinforcement right | 1 | 41131935660 | $12.39 | ENDED | Shop at ECS Tuning | ||||
| 04 | Left exterior folding top compartment | 1 | 41132238259 | $139.50 | ENDED | Shop at ECS Tuning | ||||
| 04 | Right exterior folding top compartment | 1 | 41132238260 | $108.76 | ENDED | Shop at ECS Tuning | ||||
| 05 | Covering Lower | 1 | 41328106832 | $54.06 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with EH Folding top |
=Yes |
|||||||||
| 05 | Covering Lower | 1 | 41322238262 | ENDED | Shop at ECS Tuning | |||||
| 06 | Blind plug | 101X45 | 2 | 51711937406 | $3.79 | Shop at ECS Tuning | ||||
| 07 | Supporting bracket | 2 | 41131932331 | $9.54 | ENDED | Shop at ECS Tuning | ||||
| 08 | Bracket f Bowden cable | 1 | 41211935690 | $6.57 | Shop at ECS Tuning | |||||
| 09 | Reinforcement left | 1 | 41132238261 | ENDED | Shop at ECS Tuning | |||||
| 09 | Reinforcement left | 1 | 41138121329 | $7.92 | ENDED | Shop at ECS Tuning | ||||
| 09 | Reinforcement right | 1 | 41138121330 | $7.92 | Shop at ECS Tuning | |||||
| For vehicles with EM Folding top |
=Yes |
|||||||||
| 09 | Reinforcement left | 1 | 41138121329 | $7.92 | ENDED | Shop at ECS Tuning | ||||
| 09 | Reinforcement right | 1 | 41138121330 | $7.92 | Shop at ECS Tuning | |||||
| For vehicles with EH Folding top |
=Yes |
|||||||||
| 09 | Reinforcement left | 1 | 41132238261 | ENDED | Shop at ECS Tuning | |||||
| 09 | Reinforcement right | 1 | 41138121330 | $7.92 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E30 318i Folding top compartment?
- This technical diagram illustrates the Folding top compartment within the Bodywork group for the 3 Series E30 318i produced during 1991. It provides a detailed exploded view of the components, identifying key parts such as the Folding top compartment, center (Part #41138121190).
- Which models use the hardware listed in this Folding top compartment?
- The hardware and components featured in the Folding top compartment are specific to the 3 Series E30 318i produced during 1991. These technical specifications ensure that parts like the Folding top compartment, center (41138121190) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Folding top compartment assembly?
- Each item in the Folding top compartment corresponds to the numbered list below the illustration. For the 3 Series E30 318i, you can identify the Folding top compartment, center by locating its position on the schematic, which then links to the official BMW part number 41138121190 for the Bodywork section.
