Various body parts for BMW Z4 E86 M3.2

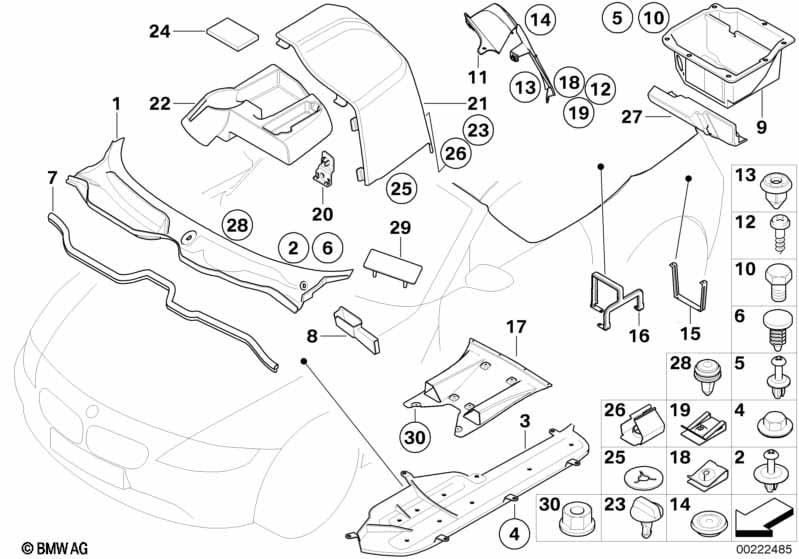

This Various body parts technical drawing provides a detailed breakdown of the assembly for the Z4 E86 M3.2. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cover, windshield | 1 | 51717017022 | $115.02 | Shop at ECS Tuning | |||||
| 02 | Expanding rivet | D=7,5MM | 4 | 51481915964 | $0.43 | Shop at ECS Tuning | ||||
| 03 | Channel cover | 1 | 06/2006 | 51717182692 | $46.76 | +core | Shop at ECS Tuning | |||
| 04 | Plastic nut for coarse threaded pin | M6 | 2 | 16131176747 | $0.53 | Shop at ECS Tuning | ||||
| 04 | Plastic nut | 6 | 51711958025 | $0.26 | Shop at ECS Tuning | |||||
| 05 | Expanding rivet | D=11,3MM | 1 | 51717001494 | $0.82 | Shop at ECS Tuning | ||||
| 06 | Plug | D=5MM | 2 | 51357019030 | $0.38 | Shop at ECS Tuning | ||||
| 07 | Gasket | 1 | 51717016192 | $12.19 | Shop at ECS Tuning | |||||
| 08 | Water drain, left | 1 | 51717018221 | $8.97 | Shop at ECS Tuning | |||||
| 08 | Water drain, right | 1 | 51717018222 | $6.42 | Shop at ECS Tuning | |||||
| 10 | Hex bolt | M6X20-U2-8.8 | 7 | 07119903995 | $0.53 | Shop at ECS Tuning | ||||
| 10 | Hex bolt with washer | M5X12-U2-ZNS3 | 3 | 07119905191 | $0.47 | Shop at ECS Tuning | ||||
| 11 | Frame, rear light, primed left | 1 | 51133443975 | $66.94 | Shop at ECS Tuning | |||||
| 11 | Frame, rear light, primed right | 1 | 51133443976 | $66.94 | Shop at ECS Tuning | |||||
| 12 | Sheet metal screw | ST4,2X19-U2-C-H | 2 | 07119904176 | $0.25 | Shop at ECS Tuning | ||||
| 12 | Fillister head screw | L=18MM | 6 | 07147146367 | $0.29 | Shop at ECS Tuning | ||||
| 13 | Expanding nut | 8X8 MM | 6 | 51127020321 | $0.47 | Shop at ECS Tuning | ||||
| 14 | Blind plug | D=40MM | 1 | 51712258519 | $0.89 | Shop at ECS Tuning | ||||
| 15 | Holder, activated carbon container cover | 1 | 51717895928 | $16.25 | Shop at ECS Tuning | |||||
| 16 | Safety bar, battery | 1 | 51473440574 | $44.02 | Shop at ECS Tuning | |||||
| 17 | cover, activated charcoal filter | 1 | 51717895927 | $83.90 | Shop at ECS Tuning | |||||
| 18 | C-clip nut | 2 | 07146988451 | $0.36 | Shop at ECS Tuning | |||||
| 19 | C-clip nut, self-locking | ST 4.8 -ZNS3 | 4 | 07147154447 | $0.27 | Shop at ECS Tuning | ||||
| 20 | Rear battery bracket | 1 | 51473427003 | $4.71 | Shop at ECS Tuning | |||||
| 21 | Battery cover | -M- | 1 | 51473448391 | $97.96 | ENDED, +core | Shop at ECS Tuning | |||
| 22 | Cover | 1 | 51473424016 | $55.46 | Shop at ECS Tuning | |||||
| 23 | Lock | 3 | 51718215962 | $0.69 | Shop at ECS Tuning | |||||
| 24 | Base | 1 | 51473448318 | Shop at ECS Tuning | ||||||
| 25 | Retainer | 3 | 51473448347 | $0.77 | Shop at ECS Tuning | |||||
| 26 | Clamp | 3 | 46637684304 | $1.34 | Shop at ECS Tuning | |||||
| 28 | Clip | 8 | 51718234698 | $0.92 | Shop at ECS Tuning | |||||
| 29 | Bracket for information label | 1 | 51717036662 | $3.33 | Shop at ECS Tuning | |||||
| 30 | Cap nut | M6 | 2 | 12421438388 | $0.63 | Shop at ECS Tuning |
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
