Glazing for BMW 6 Series E63 645Ci

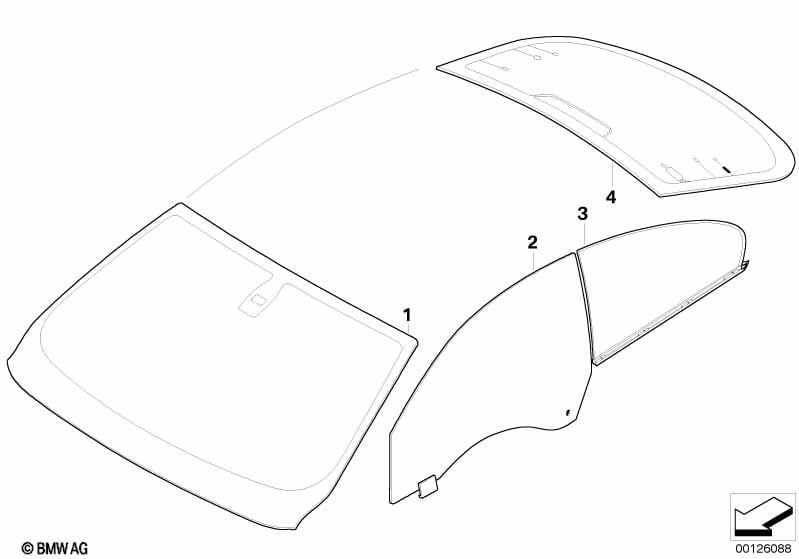

This Glazing technical drawing provides a detailed breakdown of the assembly for the 6 Series E63 645Ci. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with National version China and Green windscreen, green shade band and Climate comfort laminated glass and Lane departure warning and Head-up display |
L8AAA=No S354A=No S356A=No S5ADA=No S610A=No |
|||||||||
| 01 | Green windshield, rain sensor | BS | 1 | 51317008901 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192289285 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Rubber buffer | D = 11.1 | 7 | 51311925433 | $1.10 | Shop at ECS Tuning | ||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | Cover, windshield | 1 | 51317008911 | $51.40 | Shop at ECS Tuning | |||||
| -- | Adjusting plate | 1 | 61617037361 | $2.05 | Shop at ECS Tuning | |||||
| -- | Sound insulation windshield - windscreen | L=1405X25MM | 1 | 51489162739 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with National version China and Green windscreen, green shade band and Climate comfort laminated glass and Lane departure warning and Head-up display |
L8AAA=Yes S354A=No S356A=Yes S5ADA=No S610A=No |
|||||||||
| 01 | Green windshield, shade band+rain sensor | BS / IR | 1 | 51317008907 | $1072.18 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192180001 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Rubber buffer | D = 11.1 | 7 | 51311925433 | $1.10 | Shop at ECS Tuning | ||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | Cover, windshield | 1 | 51317008911 | $51.40 | Shop at ECS Tuning | |||||
| -- | Adjusting plate | 1 | 61617037361 | $2.05 | Shop at ECS Tuning | |||||
| -- | Sound insulation windshield - windscreen | L=1405X25MM | 1 | 51489162739 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with National version China and Green windscreen, green shade band and Climate comfort laminated glass and Lane departure warning and Head-up display |
L8AAA=No S354A=Yes S356A=No S5ADA=No S610A=No |
|||||||||
| 01 | Green windshield, shade band+rain sensor | BS | 1 | 51317008905 | $761.35 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192289285 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Rubber buffer | D = 11.1 | 7 | 51311925433 | $1.10 | Shop at ECS Tuning | ||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | Cover, windshield | 1 | 51317008911 | $51.40 | Shop at ECS Tuning | |||||
| -- | Adjusting plate | 1 | 61617037361 | $2.05 | Shop at ECS Tuning | |||||
| -- | Sound insulation windshield - windscreen | L=1405X25MM | 1 | 51489162739 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with National version China and Green windscreen, green shade band and Climate comfort laminated glass and Climate comfort windscreen and Lane departure warning and Head-up display |
L8AAA=No S354A=No S356A=Yes S358A=Yes S5ADA=No S610A=Yes |
|||||||||
| 01 | Green windshield, rain sensor | BS / IR / HUD | 1 | 51317042703 | $1217.68 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192289285 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Rubber buffer | D = 11.1 | 7 | 51311925433 | $1.10 | Shop at ECS Tuning | ||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | Cover, windshield | 1 | 51317008911 | $51.40 | Shop at ECS Tuning | |||||
| -- | Adjusting plate | 1 | 61617037361 | $2.05 | Shop at ECS Tuning | |||||
| -- | Sound insulation windshield - windscreen | L=1405X25MM | 1 | 51489162739 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with National version China and Green windscreen, green shade band and Climate comfort laminated glass and Climate comfort windscreen and Lane departure warning and Head-up display |
L8AAA=Yes S354A=No S356A=No S358A=No S5ADA=No S610A=Yes |
|||||||||
| 01 | Green windshield, rain sensor | BS / HUD | 1 | 51317138818 | $857.20 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192180001 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Rubber buffer | D = 11.1 | 7 | 51311925433 | $1.10 | Shop at ECS Tuning | ||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | Cover, windshield | 1 | 51317008911 | $51.40 | Shop at ECS Tuning | |||||
| -- | Adjusting plate | 1 | 61617037361 | $2.05 | Shop at ECS Tuning | |||||
| -- | Sound insulation windshield - windscreen | L=1405X25MM | 1 | 51489162739 | ENDED | Shop at ECS Tuning | ||||
| 02 | Side window, door, green, left | 1 | 51337009709 | $208.97 | Shop at ECS Tuning | |||||
| 02 | Side window, door, green, right | 1 | 51337009710 | $208.97 | Shop at ECS Tuning | |||||
| 03 | Side window, green fixed, rear left | 1 | 51367069221 | $129.54 | Shop at ECS Tuning | |||||
| 03 | Side window, green fixed, rear right | 1 | 51367069222 | $129.54 | Shop at ECS Tuning | |||||
| For vehicles with National version China |
L8AAA=Yes |
|||||||||
| 04 | Rear window green | 1 | 09/2007 | 51317009074 | $535.34 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 09/2007 | 83192180001 | Shop at ECS Tuning | ||||
| For vehicles with National version China and Climate comfort laminated glass and TV function |
L8AAA=No S356A=Yes S601A=Yes |
|||||||||
| 04 | Rear window green w. antenne | IR | 1 | 09/2007 | 51317120089 | $1762.49 | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 09/2007 | 83192289285 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
