Strut brace for BMW 3 Series E92 M3 (2008)

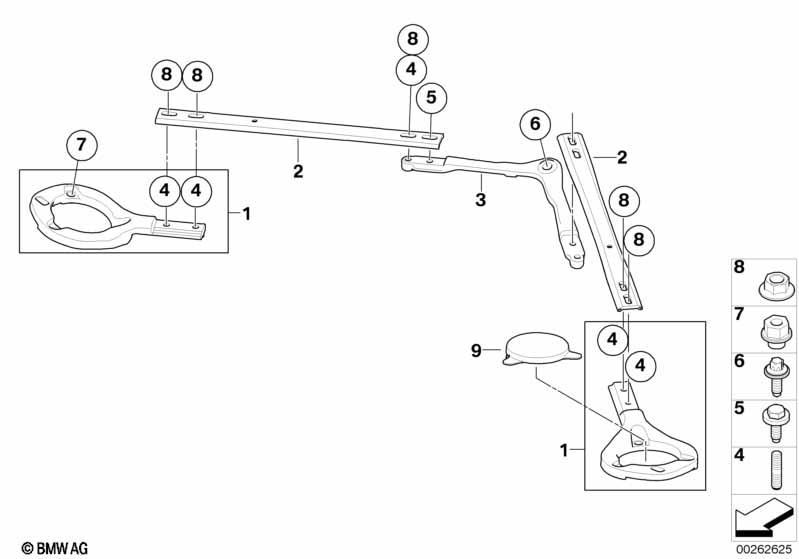

This Strut brace technical drawing provides a detailed breakdown of the assembly for the 3 Series E92 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Ring, strut tower brace, left | 1 | 51618055091 | Shop at ECS Tuning | ||||||
| 01 | Ring, strut tower brace, right | 1 | 51618055092 | Shop at ECS Tuning | ||||||
| 02 | Strut brace | 2 | 51618044553 | $53.11 | +core | Shop at ECS Tuning | ||||
| 03 | Mount for strut brace | 1 | 51618045860 | $78.97 | +core | Shop at ECS Tuning | ||||
| 04 | Stud | M8X29 | 2 | 51618046445 | $4.80 | Shop at ECS Tuning | ||||
| 04 | Stud | M8X32 | 4 | 51717898374 | $4.80 | Shop at ECS Tuning | ||||
| 05 | Hex bolt | M8X20-8.8ZNS3 | 2 | 07119904401 | $0.38 | Shop at ECS Tuning | ||||
| 06 | ASA-Bolt with circlip | M12X1.5X39 | 1 | 07146954965 | $2.78 | Shop at ECS Tuning | ||||
| 06 | Torx bolt | M10X16-10.9- | 2 | 07146963730 | $1.53 | Shop at ECS Tuning | ||||
| 07 | Cap nut | 6 | 51712268565 | $8.61 | Shop at ECS Tuning | |||||
| 08 | Self-locking collar nut | M8-8 ZNS3 | 6 | 31316769731 | $0.38 | Shop at ECS Tuning | ||||
| 09 | Covering cap | 2 | 51617891281 | $3.86 | Shop at ECS Tuning |
