Exterior trim / grill for BMW MINI Clubman R55 LCI Cooper S

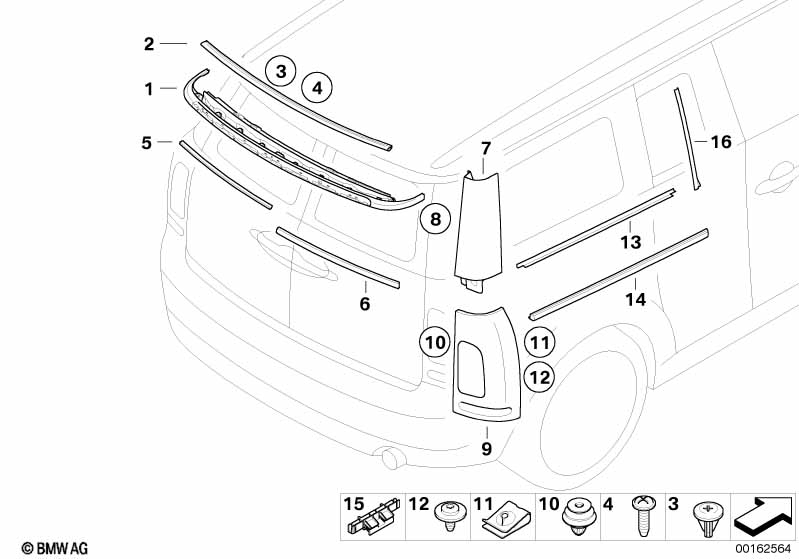

This Exterior trim / grill technical drawing provides a detailed breakdown of the assembly for the MINI Clubman R55 LCI Cooper S. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Roof end trim cover, rear | 1 | 51137168087 | $77.40 | Shop at ECS Tuning | |||||
| 02 | Seal roof rear | 1 | 51767167238 | $22.00 | Shop at ECS Tuning | |||||
| 03 | Expanding nut | 8 | 63252758031 | Shop at ECS Tuning | ||||||
| 04 | Fillister head screw | 8 | 07142756863 | $0.62 | Shop at ECS Tuning | |||||
| 05 | Insert, trim strip, Splitdoor | 2 | 51137167245 | $11.89 | Shop at ECS Tuning | |||||
| 06 | Trim strip, split door, left | 1 | 51132754061 | $26.34 | Shop at ECS Tuning | |||||
| 06 | Trim strip, split door, right | 1 | 51132754062 | $26.34 | Shop at ECS Tuning | |||||
| 07 | Cover column C left | SCHWARZ | 1 | 51137240227 | ENDED, +core | Shop at ECS Tuning | ||||
| 07 | Cover column C right | SCHWARZ | 1 | 51137240228 | ENDED, +core | Shop at ECS Tuning | ||||
| For vehicles with C-pillars in cool champagne |
S3B2A=Yes |
|||||||||
| 07 | Cover column C right | COOL CHAMPAGNE | 1 | 06/2014 | 51137345024 | ENDED | Shop at ECS Tuning | |||
| 07 | Trim cover, C-pillar, left, primed | 1 | 51130053541 | Shop at ECS Tuning | ||||||
| For vehicles with C-pillars in silver |
S3ANA=Yes |
|||||||||
| 07 | Cover column C left | SILBER | 1 | 51137240229 | ENDED, +core | Shop at ECS Tuning | ||||
| 07 | Cover column C right | SILBER | 1 | 51137240230 | ENDED, +core | Shop at ECS Tuning | ||||
| 08 | Torx bolt | 8 | 07142754323 | $0.36 | Shop at ECS Tuning | |||||
| 09 | Finisher, rear light, primed right | 1 | 51130053542 | Shop at ECS Tuning | ||||||
| 09 | Finisher, rear light, primed left | 1 | 51130053543 | Shop at ECS Tuning | ||||||
| For vehicles with C-pillars in cool champagne |
S3B2A=Yes |
|||||||||
| 09 | Tail light finisher, left | COOL CHAMPAGNE | 1 | 51137345025 | ENDED | Shop at ECS Tuning | ||||
| 09 | Tail light finisher, right | COOL CHAMPAGNE | 1 | 51137345026 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Italy package |
P7HMA=Yes |
|||||||||
| 09 | Tail light finisher, right | WHITE SILVER | 1 | 08/2010 | 06/2014 | 51137290378 | ENDED, +core | Shop at ECS Tuning | ||
| 09 | Tail light finisher, left | WHITE SILVER | 1 | 08/2010 | 51137290377 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Exterior parts in vehicle color |
S321A=Yes |
|||||||||
| 09 | Tail light finisher, left | MIDNIGHT BLACK | 1 | 51137330033 | ENDED | Shop at ECS Tuning | ||||
| 09 | Tail light finisher, right | MIDNIGHT BLACK | 1 | 51137330034 | ENDED | Shop at ECS Tuning | ||||
| 09 | Tail light finisher, right | LASER BLUE MET | 1 | 07/2011 | 51137311090 | ENDED, +core | Shop at ECS Tuning | |||
| 09 | Tail light finisher, left | LASER BLUE MET | 1 | 07/2011 | 51137311091 | ENDED, +core | Shop at ECS Tuning | |||
| 09 | Tail light finisher, right | PEPPER WHITE | 1 | 07/2011 | 51137311092 | ENDED, +core | Shop at ECS Tuning | |||
| 09 | Tail light finisher, left | PEPPER WHITE | 1 | 07/2011 | 51137311093 | ENDED, +core | Shop at ECS Tuning | |||
| 09 | Tail light finisher, right | BRIT RACE GREEN | 1 | 07/2011 | 51137311094 | ENDED, +core | Shop at ECS Tuning | |||
| 09 | Tail light finisher, left | BRIT RACE GREEN | 1 | 07/2011 | 51137311095 | ENDED, +core | Shop at ECS Tuning | |||
| 09 | Tail light finisher, right | ECLIPSE GREY | 1 | 07/2011 | 51137311096 | ENDED, +core | Shop at ECS Tuning | |||
| 09 | Tail light finisher, left | ECLIPSE GREY | 1 | 07/2011 | 51137311097 | ENDED, +core | Shop at ECS Tuning | |||
| 09 | Tail light finisher, left | ICE BLUE | 1 | 07/2011 | 51137331075 | ENDED | Shop at ECS Tuning | |||
| 09 | Tail light finisher, right | ICE BLUE | 1 | 07/2011 | 51137331076 | ENDED | Shop at ECS Tuning | |||
| For vehicles with C-pillars in silver |
S3ANA=Yes |
|||||||||
| 09 | Tail light finisher, left | SILBER | 1 | 06/2014 | 51137240233 | ENDED, +core | Shop at ECS Tuning | |||
| 09 | Tail light finisher, right | SILBER | 1 | 51137240234 | ENDED, +core | Shop at ECS Tuning | ||||
| 10 | Clip with seal ring, gray | 4 | 07142754954 | $0.64 | Shop at ECS Tuning | |||||
| 11 | C-clip nut | 6 | 07146988451 | $0.36 | Shop at ECS Tuning | |||||
| 12 | Fillister head self-tapping screw | ISA ST4,2X10,5 | 6 | 07149124462 | $0.80 | Shop at ECS Tuning | ||||
| 13 | Insert, trim strip, right sidewall | 1 | 51377167220 | $16.92 | Shop at ECS Tuning | |||||
| 14 | Molding, side panel, rear right | CHROM | 1 | 51372754070 | $37.36 | Shop at ECS Tuning | ||||
| 15 | Clip | 1 | 51372756103 | $0.95 | Shop at ECS Tuning | |||||
| 16 | Trim cover, B2-pillar | 1 | 51137167226 | $25.01 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
