Trim cover, rear for BMW MINI Clubman R55 LCI Cooper S

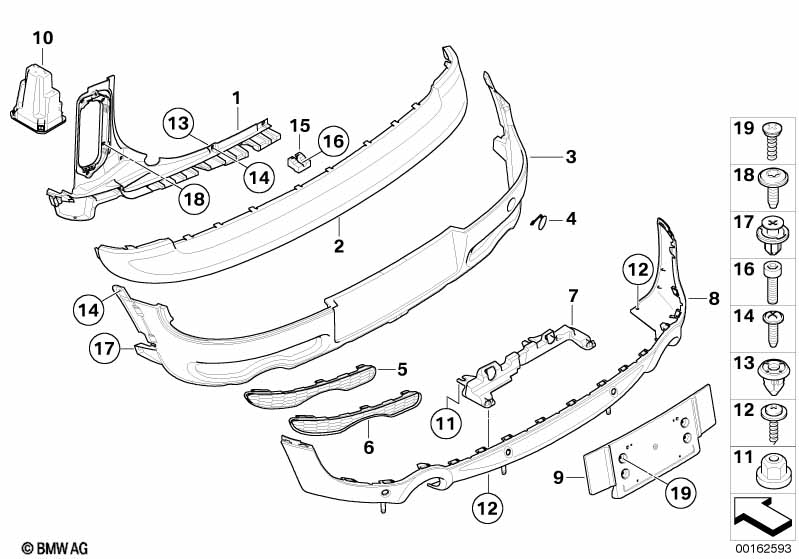

This Trim cover, rear technical drawing provides a detailed breakdown of the assembly for the MINI Clubman R55 LCI Cooper S. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Mount, bumper left | 1 | 08/2010 | 51127167563 | $63.57 | +core | Shop at ECS Tuning | |||
| 01 | Mount, bumper right | 1 | 08/2010 | 51127167564 | $63.57 | +core | Shop at ECS Tuning | |||
| Paint code black U668. Paint code Pure Silver M900. |
||||||||||
| 02 | Cover, bumper, rear, primed | 1 | 08/2010 | 51122757491 | $136.32 | +core | Shop at ECS Tuning | |||
| 03 | Bumper trim panel, primed, rear | 1 | 08/2010 | 51122757493 | $304.68 | +core | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Set of mounted parts, bumper, rear | VALUE PARTS | 1 | 08/2010 | 51122411407 | Shop at ECS Tuning | ||||
| 04 | Cover, towing eye, primed | 1 | 08/2010 | 51122757492 | $9.88 | Shop at ECS Tuning | ||||
| When ordering indicate color code | ||||||||||
| 04 | Cover, towing eye, painted | CODE - UNI/MET. | 1 | 08/2010 | 51120442796 | ENDED, +core | Shop at ECS Tuning | |||
| 05 | Grid left | SCHWARZ | 1 | 08/2010 | 51127173633 | $49.70 | +core | Shop at ECS Tuning | ||
| 05 | Grid, right | SCHWARZ | 1 | 08/2010 | 51127173634 | $49.70 | +core | Shop at ECS Tuning | ||
| For vehicles with Chrome Line exterieur |
S346A=Yes |
|||||||||
| 06 | Grid left | CHROM | 1 | 08/2010 | 51122755533 | $65.62 | +core | Shop at ECS Tuning | ||
| 06 | Grid, right | CHROM | 1 | 08/2010 | 51122755534 | $65.62 | +core | Shop at ECS Tuning | ||
| 07 | Guide, bottom center | 1 | 08/2010 | 51127250966 | Shop at ECS Tuning | |||||
| For vehicles with Park Distance Control (PDC), rear |
S507A=No |
|||||||||
| 08 | Spoiler center | SCHWARZ | 1 | 08/2010 | 51127173630 | $107.13 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Park Distance Control (PDC), rear Important notice! Observe product information. Use "Only in conjunction with" parts. |
S507A=No |
|||||||||
| 08 | Spoiler center | SCHWARZ | 1 | 08/2010 | 51122754260 | $107.13 | +core | Shop at ECS Tuning | ||
| only in conjunction with | ||||||||||
| -- | Decoupling ring PDC torque converter | 4 | 08/2010 | 66206923000 | $1.05 | Shop at ECS Tuning | ||||
| -- | Kit dummy trim | GEN 4 | 1 | 08/2010 | 51125A3F536 | Shop at ECS Tuning | ||||
| -- | Stick-on label | NO PDC | 1 | 08/2010 | 01295A3BFA7 | Shop at ECS Tuning | ||||
| For vehicles with Park Distance Control (PDC), rear |
S507A=Yes |
|||||||||
| 08 | Spoiler center | SCHWARZ | 1 | 08/2010 | 51122754260 | $107.13 | +core | Shop at ECS Tuning | ||
| For vehicles with National version China |
L8AAA=Yes |
|||||||||
| 09 | Licence plate base | SCHWARZ | 1 | 08/2010 | 51132757464 | +core | Shop at ECS Tuning | |||
| For vehicles with National version Korea |
L802A=Yes |
|||||||||
| 09 | Licence plate base | SCHWARZ | 1 | 08/2010 | 51132757463 | $55.11 | +core | Shop at ECS Tuning | ||
| 10 | Rear ventilation | 2 | 08/2010 | 64226976991 | $21.07 | Shop at ECS Tuning | ||||
| 11 | Plastic capnut with washer | D=18MM | 4 | 08/2010 | 51161943122 | $0.39 | Shop at ECS Tuning | |||
| 11 | Plastic nut for coarse threaded pin | M6 | 4 | 08/2010 | 07147336362 | Shop at ECS Tuning | ||||
| 12 | Fillister head screw | L=18MM | 2 | 08/2010 | 07147146367 | $0.29 | Shop at ECS Tuning | |||
| 13 | Expanding nut | 8X8 MM | 2 | 08/2010 | 51127020321 | $0.47 | Shop at ECS Tuning | |||
| 14 | Fillister head screw | L=18MM | 2 | 08/2010 | 07147146367 | $0.29 | Shop at ECS Tuning | |||
| 15 | Rubber stopper, rear door | 1 | 08/2010 | 51492756547 | $3.42 | Shop at ECS Tuning | ||||
| 16 | Fillister-head screw | 1 | 08/2010 | 51122757174 | $0.59 | Shop at ECS Tuning | ||||
| 17 | Expanding rivet | 2 | 08/2010 | 07130702966 | $0.48 | Shop at ECS Tuning | ||||
| 18 | Torx bolt | 8 | 08/2010 | 07142754323 | $0.36 | Shop at ECS Tuning | ||||
| 19 | Phillips screw f plastic material | TS5X25-ZNNID-SW | 4 | 08/2010 | 07146959925 | $0.29 | Shop at ECS Tuning | |||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
