Seat rear, upholstery & cover base seat for BMW MINI R50 Cooper (2002)

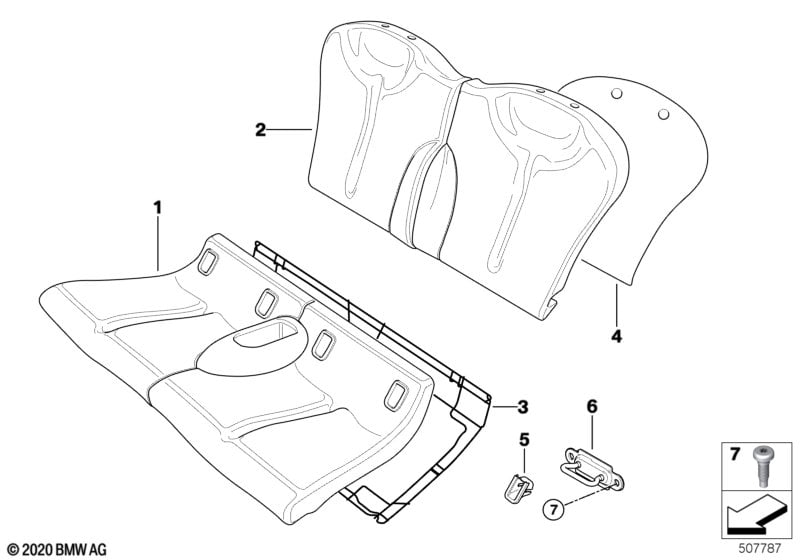

This Seat rear, upholstery & cover base seat technical drawing provides a detailed breakdown of the assembly for the MINI R50 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2002.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Fabric "Kaleido" |
S8=Yes |
|||||||||
| 01 | Seat cover cloth | S8TB TARTAN RED | 1 | 07/2004 | 52207051348 | ENDED | Shop at ECS Tuning | |||
| 01 | Seat cover cloth | S8PN,S8PV BLACK | 1 | 07/2004 | 52207051349 | $479.00 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Leather soft |
T3=Yes |
|||||||||
| 01 | Seat cover leather | T3CB CORD.BEIGE | 1 | 52207051339 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Leather "Gravity" |
T2=Yes |
|||||||||
| 01 | Seat cover leather | T2EM EM.GREEN | 1 | 07/2004 | 52207051350 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather "Profile" |
T5=Yes |
|||||||||
| 01 | Seat cover leather | T5PN PANTHER BL | 1 | 52207051351 | $1147.56 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Fabric/leather "Kaleido" |
S5=Yes |
|||||||||
| 01 | Seat cover cloth | S5PN PANTHER BL | 1 | 07/2004 | 52207051337 | ENDED | Shop at ECS Tuning | |||
| 01 | Seat cover cloth | S5TB TARTAN RED | 1 | 07/2004 | 52207051338 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Isofix-System and Leather "Profile" |
S470A=Yes T5=Yes |
|||||||||
| 01 | Seat cover leather | T5PN PANTHER BL | 1 | 52207051367 | $1147.56 | Shop at ECS Tuning | ||||
| For vehicles with Isofix-System and Fabric/leather "Kaleido" |
S470A=Yes S5=Yes |
|||||||||
| 01 | Seat cover cloth | S5PN PANTHER BL | 1 | 07/2004 | 52207051352 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Seat cover cloth | S5TB TARTAN RED | 1 | 07/2004 | 52207051353 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Isofix-System and Leather soft |
S470A=Yes T3=Yes |
|||||||||
| 01 | Seat cover leather | T3CB CORD.BEIGE | 1 | 52207051355 | $1147.56 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Isofix-System and Leather "Gravity" |
S470A=Yes T2=Yes |
|||||||||
| 01 | Seat cover leather | T2EM EM.GREEN | 1 | 07/2004 | 52207051356 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Isofix-System and Imitation leather "Leatherette" |
S470A=Yes K7=Yes |
|||||||||
| 01 | Seat cover vinyl | K7PN PANTHER BL | 1 | 52207056583 | $479.00 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Seat cover vinyl | K7TV SILVERGREY | 1 | 52207136494 | $479.00 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Isofix-System and Fabric "Kaleido" |
S470A=Yes S8=Yes |
|||||||||
| 01 | Seat cover cloth | S8TB TARTAN RED | 1 | 07/2004 | 52207051365 | $479.00 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Seat cover cloth | S8PN,S8PV BLACK | 1 | 07/2004 | 52207051366 | $479.00 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Fabric "Kaleido" |
S8=Yes |
|||||||||
| 02 | Cover backrest cloth left | S8TB TARTAN RED | 1 | 07/2004 | 52207051321 | ENDED, +core | Shop at ECS Tuning | |||
| 02 | Cover backrest cloth right | S8TB TARTAN RED | 1 | 07/2004 | 52207051322 | ENDED, +core | Shop at ECS Tuning | |||
| 02 | Cover backrest cloth left | S8PN,S8PV BLACK | 1 | 07/2004 | 52207051323 | $238.49 | ENDED | Shop at ECS Tuning | ||
| 02 | Cover backrest cloth right | S8PN,S8PV BLACK | 1 | 07/2004 | 52207051324 | $238.49 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Leather soft |
T3=Yes |
|||||||||
| 02 | Cover backrest leather left | T3CB CORD.BEIGE | 1 | 52207051329 | $506.15 | ENDED | Shop at ECS Tuning | |||
| 02 | Cover backrest leather right | T3CB CORD.BEIGE | 1 | 52207051330 | $506.15 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather "Gravity" |
T2=Yes |
|||||||||
| 02 | Cover backrest leather left | T2EM EM.GREEN | 1 | 07/2004 | 52207051331 | ENDED, +core | Shop at ECS Tuning | |||
| 02 | Cover backrest leather right | T2EM EM.GREEN | 1 | 07/2004 | 52207051332 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Imitation leather "Leatherette" |
K7=Yes |
|||||||||
| 02 | Cover backrest vinyl left | K7PN PANTHER BL | 1 | 52207056575 | $238.49 | ENDED, +core | Shop at ECS Tuning | |||
| 02 | Cover backrest vinyl right | K7PN PANTHER BL | 1 | 52207056576 | $238.49 | ENDED, +core | Shop at ECS Tuning | |||
| 02 | Cover backrest vinyl left | K7TV SILVERGREY | 1 | 52207136469 | $238.49 | ENDED, +core | Shop at ECS Tuning | |||
| 02 | Cover backrest vinyl right | K7TV SILVERGREY | 1 | 52207136470 | $238.49 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Leather "Profile" |
T5=Yes |
|||||||||
| 02 | Cover backrest leather left | T5PN PANTHER BL | 1 | 52207051333 | $506.15 | ENDED | Shop at ECS Tuning | |||
| 02 | Cover backrest leather right | T5PN PANTHER BL | 1 | 52207051334 | $506.15 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Fabric/leather "Kaleido" |
S5=Yes |
|||||||||
| 02 | Cover backrest cloth left | S5PN PANTHER BL | 1 | 07/2004 | 52207051325 | ENDED | Shop at ECS Tuning | |||
| 02 | Cover backrest cloth right | S5PN PANTHER BL | 1 | 07/2004 | 52207051326 | $387.40 | ENDED | Shop at ECS Tuning | ||
| 02 | Cover backrest cloth left | S5TB TARTAN RED | 1 | 52207051369 | ENDED | Shop at ECS Tuning | ||||
| 02 | Cover backrest cloth right | S5TB TARTAN RED | 1 | 52207051370 | ENDED | Shop at ECS Tuning | ||||
| 03 | Seat frame | 1 | 52201486661 | $48.61 | Shop at ECS Tuning | |||||
| 04 | Fleece, backrest | 1 | 07131486317 | $1.81 | Shop at ECS Tuning | |||||
| 05 | Cover isofix left | 2 | 52207043173 | $13.19 | Shop at ECS Tuning | |||||
| 05 | Cover isofix right | 2 | 52207043174 | $13.19 | Shop at ECS Tuning | |||||
| 06 | Anchorage Isofix | 4 | 72111314448 | $7.97 | +core | Shop at ECS Tuning | ||||
| 07 | Fillister head screw | M8X20MK | 8 | 46717717070 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
