Folding top gaskets for BMW 3 Series E30 325i (1991)

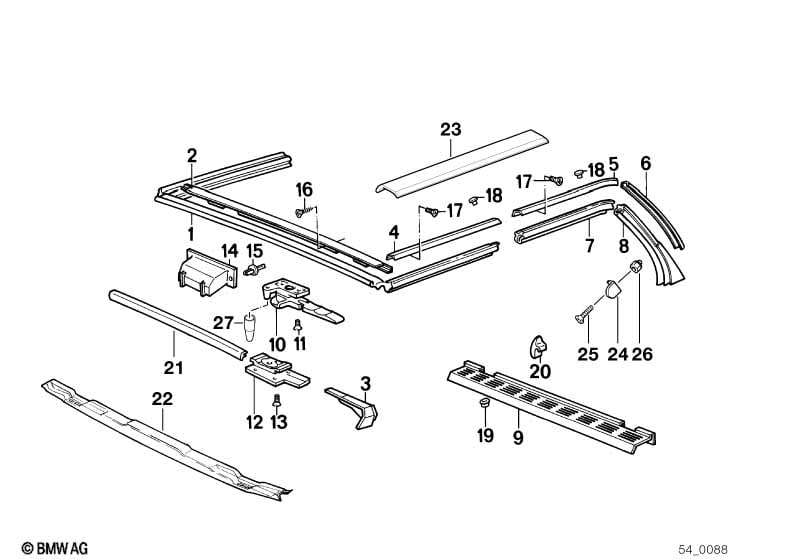

This Folding top gaskets technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1991.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Rubber seal | 1 | 54318100908 | $190.98 | Shop at ECS Tuning | |||||
| 02 | Rail front | 1 | 54311932704 | $51.46 | Shop at ECS Tuning | |||||
| 03 | Covering left | 1 | 51721940065 | $86.24 | Shop at ECS Tuning | |||||
| 03 | Covering right | 1 | 51721940066 | $86.24 | Shop at ECS Tuning | |||||
| 04 | Rail front left | 1 | 51321922779 | $57.34 | ENDED | Shop at ECS Tuning | ||||
| 04 | Rail front right | 1 | 51321922780 | $57.34 | Shop at ECS Tuning | |||||
| 05 | Rail center left | 1 | 51321922781 | $53.45 | ENDED | Shop at ECS Tuning | ||||
| 05 | Rail center right | 1 | 51321922782 | $53.45 | Shop at ECS Tuning | |||||
| 06 | Rail rear left | 1 | 51321922783 | $45.28 | ENDED | Shop at ECS Tuning | ||||
| 06 | Rail rear right | 1 | 51321922784 | $45.28 | Shop at ECS Tuning | |||||
| 07 | Left rear sealing | 1 | 01/1988 | 51328103193 | $92.05 | Shop at ECS Tuning | ||||
| 07 | Right rear sealing | 1 | 01/1988 | 51328103194 | $92.05 | Shop at ECS Tuning | ||||
| 08 | Left rear window guide | 1 | 51361923917 | $74.06 | Shop at ECS Tuning | |||||
| 08 | Rear right window guide | 1 | 51361923918 | $74.06 | Shop at ECS Tuning | |||||
| 09 | Grille | 1 | 51131932802 | $51.61 | ENDED | Shop at ECS Tuning | ||||
| 10 | Lock left | 1 | 54311932777 | $190.44 | Shop at ECS Tuning | |||||
| 10 | Lock right | 1 | 54311932778 | $190.44 | Shop at ECS Tuning | |||||
| 11 | Countersunk head screw | M6X16-8.8-ZNS3 | 4 | 07119904304 | $0.25 | Shop at ECS Tuning | ||||
| 11 | Torx bolt | ISA M6X16 | 4 | 54318103110 | $0.65 | Shop at ECS Tuning | ||||
| 12 | Base plate left | 1 | 54311942963 | $22.57 | Shop at ECS Tuning | |||||
| 12 | Base plate right | 1 | 54311942964 | $22.57 | ENDED | Shop at ECS Tuning | ||||
| 12 | Base plate right | 1 | 54312230696 | $13.89 | Shop at ECS Tuning | |||||
| For vehicles with EM Folding top or EH Folding top |
=Yes =Yes |
|||||||||
| 12 | Base plate right | 1 | 54312230696 | $13.89 | Shop at ECS Tuning | |||||
| 13 | Countersunk head screw | M6X12 | 4 | 52101817063 | $0.92 | Shop at ECS Tuning | ||||
| 14 | Recessed handle | 1 | 54311932896 | $7.62 | Shop at ECS Tuning | |||||
| 15 | Clamp | 2 | 54311932852 | $2.20 | Shop at ECS Tuning | |||||
| 16 | Fillister head self-tapping screw | ST3,5X13 | 9 | 09/1987 | 07119906720 | $0.47 | Shop at ECS Tuning | |||
| 17 | Fillister head screw | M5X9,5 | X | 54311965900 | $0.77 | Shop at ECS Tuning | ||||
| 17 | Oval head screw | M5X10-10.9 ZNS3 | X | 36317678083 | $1.78 | Shop at ECS Tuning | ||||
| 18 | Blind rivet | 4X8,5X41,5 | 6 | 09/1987 | 54311972215 | $0.98 | Shop at ECS Tuning | |||
| 19 | Push-button | 4 | 51131820141 | $0.31 | Shop at ECS Tuning | |||||
| 20 | Clothing-hook left | 1 | 54311952003 | $3.01 | ENDED | Shop at ECS Tuning | ||||
| 20 | Clothing-hook right | 1 | 54311952004 | $3.01 | ENDED | Shop at ECS Tuning | ||||
| 21 | Edge protection | 1 | 54311932890 | $18.95 | Shop at ECS Tuning | |||||
| 22 | Cover | 1 | 54311965798 | $76.82 | ENDED | Shop at ECS Tuning | ||||
| 23 | Gasket left | 1 | 51321942793 | $12.57 | Shop at ECS Tuning | |||||
| 23 | Gasket right | 1 | 51321942794 | $12.57 | Shop at ECS Tuning | |||||
| 24 | Support | 2 | 54311965883 | $26.48 | ENDED | Shop at ECS Tuning | ||||
| 25 | Countersunk head screw | M4X10 | 4 | 07119904433 | Shop at ECS Tuning | |||||
| 26 | Cap nut | M4 | 4 | 07119924314 | $0.81 | ENDED | Shop at ECS Tuning | |||
| 27 | Covering for centering bolt | 2 | 54311971255 | $11.74 | Shop at ECS Tuning | |||||
