Hardtop parts for BMW 3 Series E30 325i (1989)

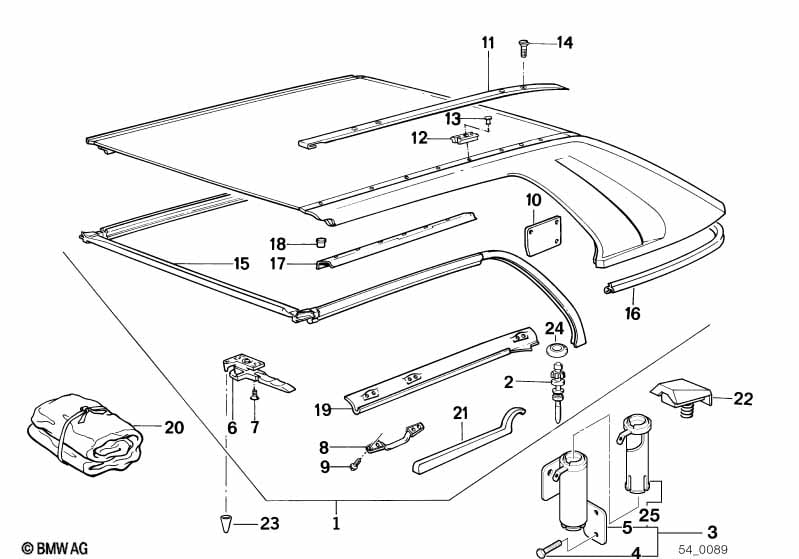

This Hardtop parts technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1989.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Set hardtop | SCHWARZ | 1 | 54211972760 | ENDED, ABE 9784559 | Shop at ECS Tuning | ||||
| 01 | Set hardtop | PERLBEIGE | 1 | 54211972764 | ENDED, ABE 9784559 | Shop at ECS Tuning | ||||
| 01 | Set hardtop | DUNKELBLAU | 1 | 54218100297 | ENDED, ABE 9784559 | Shop at ECS Tuning | ||||
| 01 | Set hardtop | DUNKELBRAUN | 1 | 54218100299 | ENDED, ABE 9784559 | Shop at ECS Tuning | ||||
| 02 | Lock left | 1 | 54211972681 | $120.94 | Shop at ECS Tuning | |||||
| 02 | Lock right | 1 | 54211972682 | $120.94 | Shop at ECS Tuning | |||||
| 03 | Retrofit kit, hardtop preparation | 1 | 09/1987 | 54211976239 | $165.73 | ENDED | Shop at ECS Tuning | |||
| 04 | Hex bolt | M6X12 | 6 | 07119913013 | $1.22 | Shop at ECS Tuning | ||||
| 05 | Left hardtop support | 1 | 09/1987 | 54211962051 | $122.15 | Shop at ECS Tuning | ||||
| 05 | Right hardtop support | 1 | 09/1987 | 54211962052 | $95.39 | ENDED | Shop at ECS Tuning | |||
| 06 | Lock left | 1 | 54311932777 | $190.44 | Shop at ECS Tuning | |||||
| 06 | Lock right | 1 | 54311932778 | $190.44 | Shop at ECS Tuning | |||||
| 07 | Countersunk head screw | M6X16-8.8-ZNS3 | 4 | 07119904304 | $0.25 | Shop at ECS Tuning | ||||
| 07 | Torx bolt | ISA M6X16 | 4 | 54318103110 | $0.65 | Shop at ECS Tuning | ||||
| 08 | Handle | 4 | 51161888099 | $21.28 | ENDED | Shop at ECS Tuning | ||||
| 09 | Fillister head self-tapping screw | ST4,8X16 Z2 | X | 07119907789 | $0.13 | ENDED | Shop at ECS Tuning | |||
| 10 | Covering left | 1 | 54211959981 | $32.73 | Shop at ECS Tuning | |||||
| 10 | Covering right | 1 | 54211959982 | $32.73 | Shop at ECS Tuning | |||||
| 11 | Roof ledge | 1 | 54211953953 | $73.86 | Shop at ECS Tuning | |||||
| 11 | Roof ledge | 1 | 54211953954 | $73.86 | Shop at ECS Tuning | |||||
| 12 | Fixing clamp | X | 54211953955 | $11.74 | Shop at ECS Tuning | |||||
| 13 | Rivet | 3,2-3A | X | 07129948742 | $0.11 | ENDED | Shop at ECS Tuning | |||
| 14 | Countersunk head screw | M8X16 | 8 | 07119928176 | $0.35 | ENDED | Shop at ECS Tuning | |||
| 15 | Rubber seal | 1 | 54211962050 | $704.04 | ENDED | Shop at ECS Tuning | ||||
| 16 | Rear sealing | 1 | 54211976989 | $152.43 | ENDED | Shop at ECS Tuning | ||||
| 17 | Rail | 1 | 54211953045 | $44.92 | ENDED | Shop at ECS Tuning | ||||
| 17 | Rail | 1 | 54211953046 | $45.41 | Shop at ECS Tuning | |||||
| 19 | Finisher | 1 | 54211953947 | $39.29 | Shop at ECS Tuning | |||||
| 19 | Finisher | 1 | 54211953948 | $39.29 | Shop at ECS Tuning | |||||
| 20 | Case | 1 | 54211972685 | $240.09 | ENDED | Shop at ECS Tuning | ||||
| 21 | Hook wrench | 1 | 54211972684 | $33.02 | Shop at ECS Tuning | |||||
| 22 | Covering left | 1 | 51431942787 | $18.14 | Shop at ECS Tuning | |||||
| 22 | Covering right | 1 | 51431942788 | $18.14 | Shop at ECS Tuning | |||||
| 23 | Covering for centering bolt | 2 | 54311971255 | $11.74 | Shop at ECS Tuning | |||||
| 24 | Nut | M16X1.5 | 2 | 54211961964 | $30.33 | ENDED | Shop at ECS Tuning | |||
| 25 | Left contact bush | 1 | 54211961957 | $16.61 | Shop at ECS Tuning | |||||
| 25 | Right contact bush | 1 | 54211961958 | $16.61 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- ABE = Allgemeine Betriebserlaubnis (General Operating Permit)
