Electro-hydraulic folding top parts for BMW Z3 E36 1.9

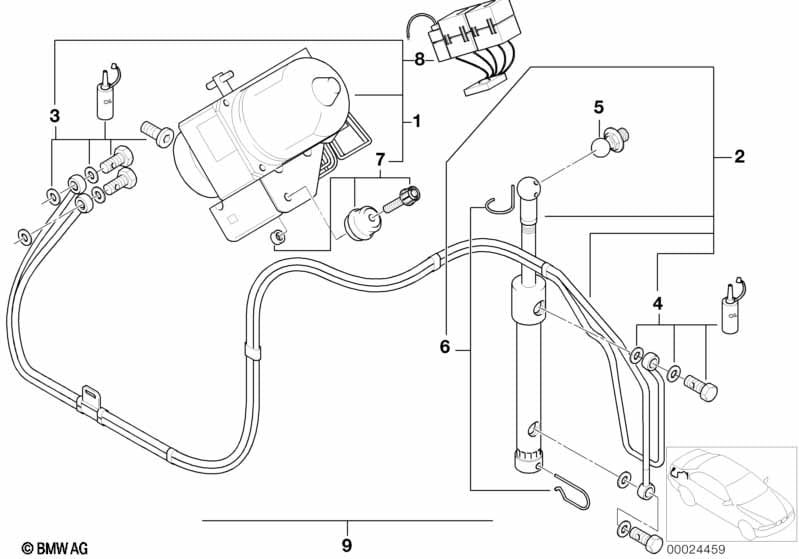

This Electro-hydraulic folding top parts technical drawing provides a detailed breakdown of the assembly for the Z3 E36 1.9. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hydro unit | 1 | 54348410305 | $624.06 | Shop at ECS Tuning | |||||
| 02 | Hydraulic cylinder | 1 | 54348410307 | $241.70 | ENDED | Shop at ECS Tuning | ||||
| Only applies to hydraulic unit | ||||||||||
| 03 | Hollow bolt set | M8X1 | 1 | 54348410306 | $67.63 | Shop at ECS Tuning | ||||
| CONSISTING OF HOLLOW BOLT GASKET small oil bottle SCREW PLUG |
||||||||||
| Only applies to hydraulic cylinder | ||||||||||
| 04 | Hollow bolt set | M8X1 | 1 | 54348410308 | $55.28 | Shop at ECS Tuning | ||||
| CONSISTING OF HOLLOW BOLT GASKET small oil bottle |
||||||||||
| 05 | Ball pin | M10 | 1 | 41218407017 | $5.63 | Shop at ECS Tuning | ||||
| 05 | Ball pin | M10X1 , D13 | 1 | 41218411130 | $10.27 | Shop at ECS Tuning | ||||
| 06 | Safety clip set | 1 | 54348410309 | $6.77 | Shop at ECS Tuning | |||||
| 07 | Mounting parts set | 1 | 54348410310 | $29.70 | +core | Shop at ECS Tuning | ||||
| 08 | Relay, change-over contact,signal violet | 2 | 61361388911 | $13.96 | Shop at ECS Tuning | |||||
| 09 | Hydraulic system | 1 | 54342497599 | $992.35 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW Z3 E36 1.9 Electro-hydraulic folding top parts?
- This technical diagram illustrates the Electro-hydraulic folding top parts within the Sliding Roof / Folding Top group for the Z3 E36 1.9. It provides a detailed exploded view of the components, identifying key parts such as the Hydro unit (Part #54348410305).
- Which models use the hardware listed in this Electro-hydraulic folding top parts?
- The hardware and components featured in the Electro-hydraulic folding top parts are specific to the Z3 E36 1.9. These technical specifications ensure that parts like the Hydro unit (54348410305) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Electro-hydraulic folding top parts assembly?
- Each item in the Electro-hydraulic folding top parts corresponds to the numbered list below the illustration. For the Z3 E36 1.9, you can identify the Hydro unit by locating its position on the schematic, which then links to the official BMW part number 54348410305 for the Sliding Roof / Folding Top section.
