Information display for BMW 8 Series E31 850Ci (1991)

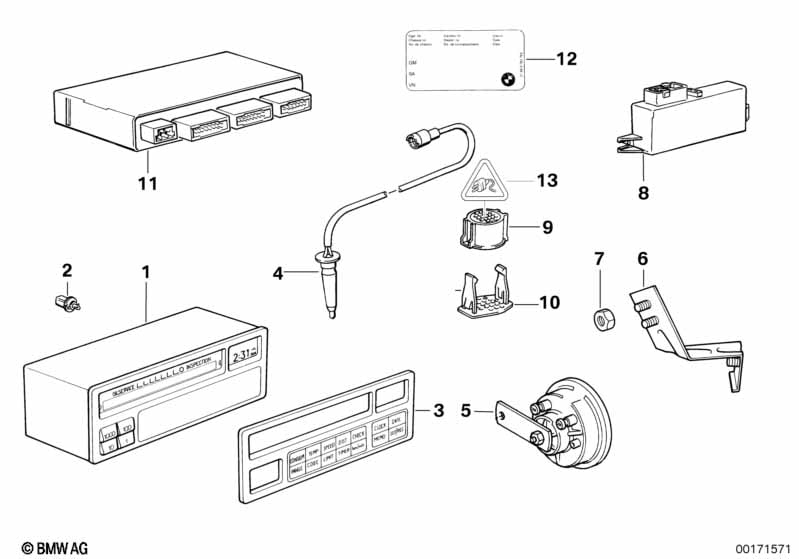

This Information display technical drawing provides a detailed breakdown of the assembly for the 8 Series E31 850Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1991.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Information display | ESPANOL | 1 | 62136914684 | $524.08 | ENDED | Shop at ECS Tuning | |||
| 01 | Information display | ITALIANO | 1 | 62136914685 | ENDED | Shop at ECS Tuning | ||||
| 01 | Information display | FRANCAISE | 1 | 62136914686 | ENDED | Shop at ECS Tuning | ||||
| 01 | Information display | ENGLISH | 1 | 62136914687 | $524.08 | ENDED | Shop at ECS Tuning | |||
| 01 | Information display | DEUTSCH | 1 | 62136914688 | ENDED | Shop at ECS Tuning | ||||
| 02 | Bulb | 12V 1,5W | 4 | 62111391260 | $3.00 | ENDED | Shop at ECS Tuning | |||
| 04 | Outside temperature sensor | 1 | 65811383204 | ENDED | Shop at ECS Tuning | |||||
| 05 | Horn | HELLA 335HZ | 1 | 61331379090 | $61.15 | Shop at ECS Tuning | ||||
| 06 | Bracket horn | 1 | 65811383347 | ENDED | Shop at ECS Tuning | |||||
| 07 | Self-locking hex nut | M6 | 3 | 64509123157 | $0.70 | Shop at ECS Tuning | ||||
| 08 | Relay for onboard computer | 1 | 09/1990 | 65818354172 | $60.86 | Shop at ECS Tuning | ||||
| 09 | Gong with holder | 1 | 04/1994 | 65818356239 | $59.70 | ENDED | Shop at ECS Tuning | |||
| 09 | Gong with holder | 1 | 65819155105 | $82.98 | Shop at ECS Tuning | |||||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 09 | Gong with holder | 1 | 04/1994 | 65818356238 | $86.07 | ENDED | Shop at ECS Tuning | |||
| 09 | Gong with holder | 1 | 65819155105 | $82.98 | Shop at ECS Tuning | |||||
| 11 | Body modul without coding | 1 | 62118362362 | $1234.94 | ENDED | Shop at ECS Tuning | ||||
| 13 | Universal socket housing, uncoded | 3 POL. | 1 | 61138352304 | $16.65 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Snap-in receptacle 2.5 watertight | 0,5-1,0 MM² | 1 | 61130007441 | $5.53 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 8 Series E31 850Ci Information display?
- This technical diagram illustrates the Information display within the Instruments, Measuring systems group for the 8 Series E31 850Ci produced during 1991. It provides a detailed exploded view of the components, identifying key parts such as the Information display (Part #62136914684).
- Which models use the hardware listed in this Information display?
- The hardware and components featured in the Information display are specific to the 8 Series E31 850Ci produced during 1991. These technical specifications ensure that parts like the Information display (62136914684) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Information display assembly?
- Each item in the Information display corresponds to the numbered list below the illustration. For the 8 Series E31 850Ci, you can identify the Information display by locating its position on the schematic, which then links to the official BMW part number 62136914684 for the Instruments, Measuring systems section.
