Water valve for BMW 5 Series E28 M535i (1987)

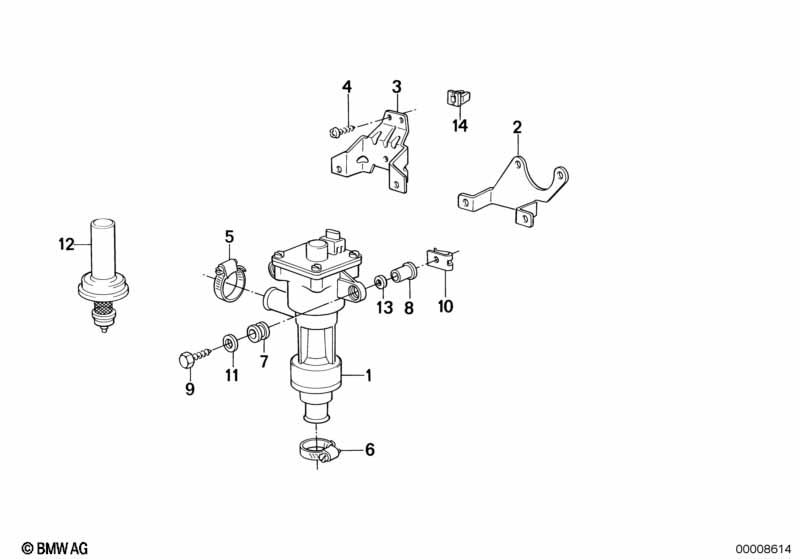

This Water valve technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 M535i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Water valve | 1 | 64111373191 | $304.39 | Shop at ECS Tuning | |||||
| 02 | Holder | 1 | 64111380579 | $2.25 | ENDED | Shop at ECS Tuning | ||||
| 03 | Holder | 1 | 41131886283 | $2.02 | Shop at ECS Tuning | |||||
| 04 | Fillister head self-tapping screw | ST3,9X13 | 1 | 07147202502 | $0.26 | Shop at ECS Tuning | ||||
| 05 | Hose clamp | L23-29 | X | 12/1995 | 07129952111 | $0.93 | ENDED | Shop at ECS Tuning | ||
| 05 | Hose clamp | L16-30 | X | 64218367179 | $1.07 | Shop at ECS Tuning | ||||
| 06 | Hose clamp | L28-33 | X | 07129952113 | $0.96 | Shop at ECS Tuning | ||||
| 07 | Grommet | 2 | 64111369672 | $0.88 | Shop at ECS Tuning | |||||
| 08 | Rivet | A6X0,75X10-ST | 2 | 07119949634 | $0.30 | Shop at ECS Tuning | ||||
| 10 | Body nut | ST4,2-1-ZNS3 | 2 | 07129904220 | $0.09 | Shop at ECS Tuning | ||||
| 11 | Washer | 4-200 HV-ZNS3 | 2 | 07119904207 | Shop at ECS Tuning | |||||
| 12 | Valve | 1 | 64118390132 | $152.65 | ENDED | Shop at ECS Tuning | ||||
| 14 | Expanding nut | ST 3.9 | 1 | 51711874203 | $0.23 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
