Electric parts for heater for BMW 3 Series E46 318i (1998)

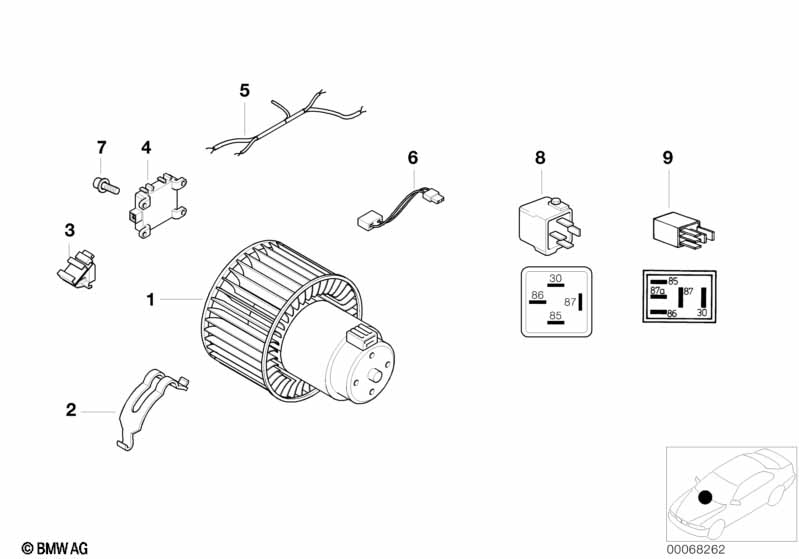

This Electric parts for heater technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Blower unit | 1 | 64118373985 | $182.27 | Shop at ECS Tuning | |||||
| 02 | Holder | 1 | 64118390874 | $5.02 | Shop at ECS Tuning | |||||
| 03 | Blower resistor | 1 | 64118372775 | $34.03 | Shop at ECS Tuning | |||||
| 04 | Heiz-/Klimagerät | 1 | 64518398838 | $123.84 | ENDED | Shop at ECS Tuning | ||||
| 05 | Heater wiring set | 1 | 09/1999 | 64118375999 | ENDED | Shop at ECS Tuning | ||||
| 06 | microswitch, auxiliary water pump | 1 | 64118373984 | $34.88 | Shop at ECS Tuning | |||||
| 07 | Screw | 40X14 | X | 64118391265 | $0.22 | Shop at ECS Tuning | ||||
| 08 | Relay, make contact, white green | 1 | 61368373700 | $13.96 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
