Evaporator / Expansion valve for BMW 5 Series E60 530i

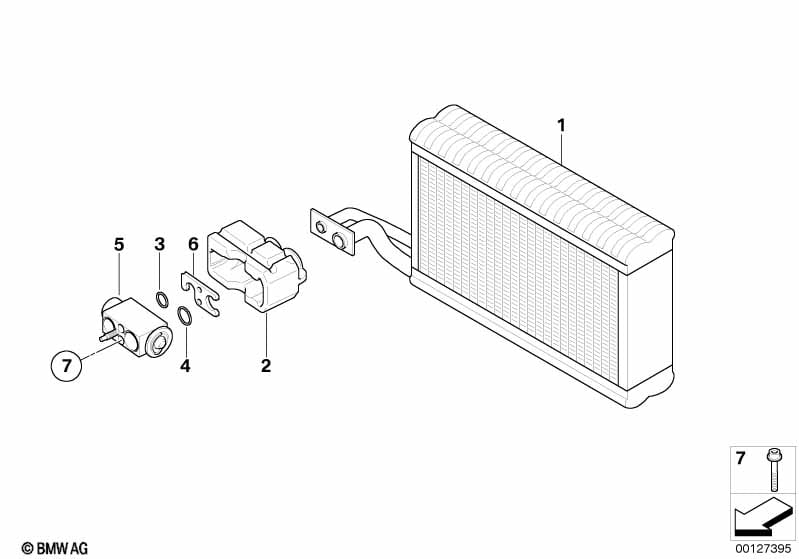

This Evaporator / Expansion valve technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 530i. It includes part names, part numbers and all associated mounting hardware.

Evaporator / Expansion valve
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Evaporator 1 64119238655 Shop at ECS Tuning
02 Gasket 1 64116933915 $5.44 Shop at ECS Tuning
03 Gasket ring 11.1X1.78 1 64116933912 $0.33 Shop at ECS Tuning
04 Gasket ring 17.17X1.78 1 64116933913 $0.33 Shop at ECS Tuning
05 Expansion valve 1 64119178316 $145.03 Shop at ECS Tuning
06 Plate 1 64116933911 $8.33 Shop at ECS Tuning
07 Fillister head with washer M5X35 2 64116910423 $1.77 Shop at ECS Tuning
