Independ.heating water valves IHKA for BMW X5 E53 3.0d

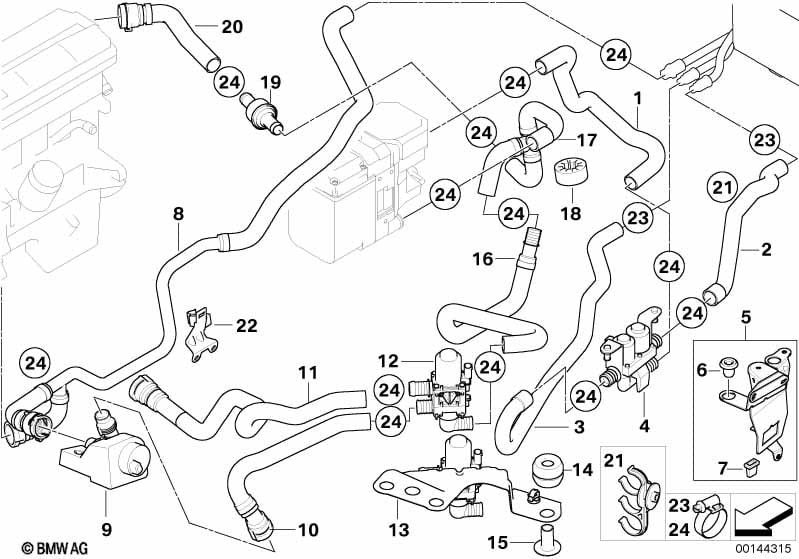

This Independ.heating water valves IHKA technical drawing provides a detailed breakdown of the assembly for the X5 E53 3.0d. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hose f additional heater and water valve | 1 | 64218383709 | Shop at ECS Tuning | ||||||
| 02 | Hose f water valve and left radiator | 1 | 64218409063 | $14.84 | ENDED | Shop at ECS Tuning | ||||
| 03 | Hose f water valve and right radiator | 1 | 64218409064 | $16.16 | ENDED | Shop at ECS Tuning | ||||
| 04 | Water valve | 1 | 64116906652 | $124.52 | Shop at ECS Tuning | |||||
| 05 | Water valve bracket | 1 | 64126900151 | $27.13 | Shop at ECS Tuning | |||||
| 06 | Grommet | 2 | 64126910076 | $1.50 | Shop at ECS Tuning | |||||
| 07 | Rubber Mounting | 1 | 64118391475 | $1.03 | Shop at ECS Tuning | |||||
| 08 | Hose f add.water pump snd heat.radiator | 1 | 64216925234 | $128.43 | Shop at ECS Tuning | |||||
| 09 | Additional water pump | 1 | 64116907811 | $163.38 | Shop at ECS Tuning | |||||
| 10 | Hose f change-ov.valve/addit.water pump | 1 | 64216939158 | Shop at ECS Tuning | ||||||
| 11 | Hose,change-over valve and engine return | 1 | 64216939159 | Shop at ECS Tuning | ||||||
| 12 | Changeover valve | 1 | 64126918924 | Shop at ECS Tuning | ||||||
| 13 | Switchover valve with bracket | 1 | 64126939511 | Shop at ECS Tuning | ||||||
| 14 | Rubber grommet | 3 | 64128386013 | $3.65 | ENDED | Shop at ECS Tuning | ||||
| 15 | Bushing | 3 | 64128386014 | $3.65 | ENDED | Shop at ECS Tuning | ||||
| 16 | Hose, parking heater changeover valve | 1 | 64216939160 | Shop at ECS Tuning | ||||||
| 17 | Hose, engine inlet and indep. heater | 1 | 64218381225 | ENDED | Shop at ECS Tuning | |||||
| 18 | Damper mount | 1 | 64218378619 | ENDED | Shop at ECS Tuning | |||||
| 19 | non-return valve | 1 | 64128379871 | $44.64 | Shop at ECS Tuning | |||||
| 20 | Hose, engine inlet and addit.heater | 1 | 64218381224 | Shop at ECS Tuning | ||||||
| 21 | Hose clamp, triple | 1 | 64218379738 | $1.98 | Shop at ECS Tuning | |||||
| 22 | Holder | 1 | 64126912486 | Shop at ECS Tuning | ||||||
| 23 | Hose clamp | L18-24 | X | 07129952109 | $1.07 | Shop at ECS Tuning | ||||
| 24 | Hose clamp | L16-30 | X | 64218367179 | $1.07 | Shop at ECS Tuning |
