Independent heating water valves for BMW 3 Series E90 320d (2006)

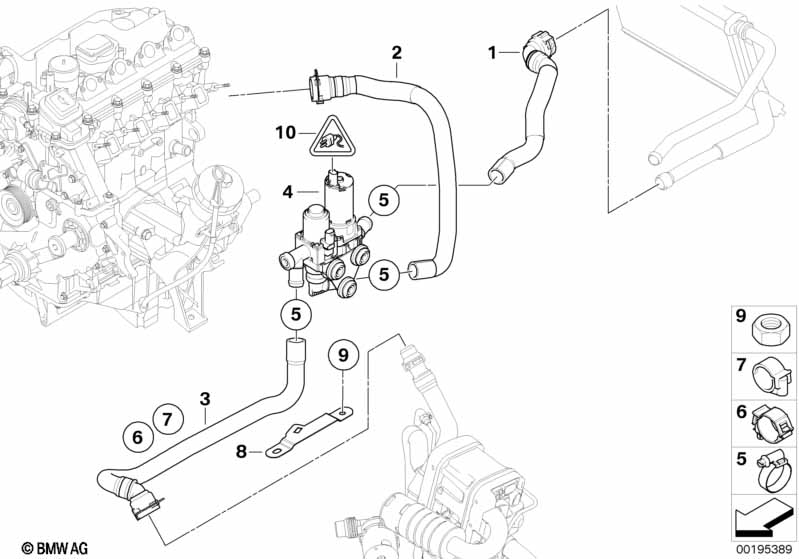

This Independent heating water valves technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 320d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2006.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Auxiliary heating |
S536A=Yes |
||||||||
| For vehicles with Auxiliary heating |
S536A=Yes |
|||||||||
| 01 | Hose f radiator-changeover valve | 1 | 64126953090 | $23.71 | Shop at ECS Tuning | |||||
| 02 | Hose f engine inlet-changeover valve | 1 | 64126953096 | Shop at ECS Tuning | ||||||
| 03 | Hose, parking heater changeover valve | 1 | 09/2006 | 64126953098 | Shop at ECS Tuning | |||||
| 04 | Changeover valve | 1 | 64126951814 | $327.76 | Shop at ECS Tuning | |||||
| 05 | Hose clamp | L16-30 | 3 | 64218367179 | $1.07 | Shop at ECS Tuning | ||||
| 06 | Hose clamp | 1 | 64216953101 | ENDED | Shop at ECS Tuning | |||||
| 07 | Hose clamp | 2 | 64216930041 | $0.55 | Shop at ECS Tuning | |||||
| 10 | Universal socket housing uncoded | 2 POL. | 1 | 09/2007 | 61138795954 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS ELA with cable | 0,5-0,75 MM² AG | 1 | 09/2007 | 61130056384 | Shop at ECS Tuning | ||||
| -- | Contact bushing MQS ELA with cable | 0,35-0,5 MM² AG | 1 | 09/2007 | 61130056961 | Shop at ECS Tuning | ||||
| 10 | Rep. kit for socket housing | 2 POL. | 1 | 61132359999 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS ELA with cable | 0,5-0,75 MM² AG | 1 | 61130056384 | Shop at ECS Tuning | |||||
| -- | Contact bushing MQS ELA with cable | 0,35-0,5 MM² AG | 1 | 61130056961 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E90 320d Independent heating water valves?
- This technical diagram illustrates the Independent heating water valves within the Heater and Air Conditioning group for the 3 Series E90 320d produced during 2006. It provides a detailed exploded view of the components, identifying key parts such as the Hose f radiator-changeover valve (Part #64126953090).
- Which models use the hardware listed in this Independent heating water valves?
- The hardware and components featured in the Independent heating water valves are specific to the 3 Series E90 320d produced during 2006. These technical specifications ensure that parts like the Hose f radiator-changeover valve (64126953090) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Independent heating water valves assembly?
- Each item in the Independent heating water valves corresponds to the numbered list below the illustration. For the 3 Series E90 320d, you can identify the Hose f radiator-changeover valve by locating its position on the schematic, which then links to the official BMW part number 64126953090 for the Heater and Air Conditioning section.
