E169 (F 650, F 650 ST) F 650 ST 97 (0163,0168) Alternator

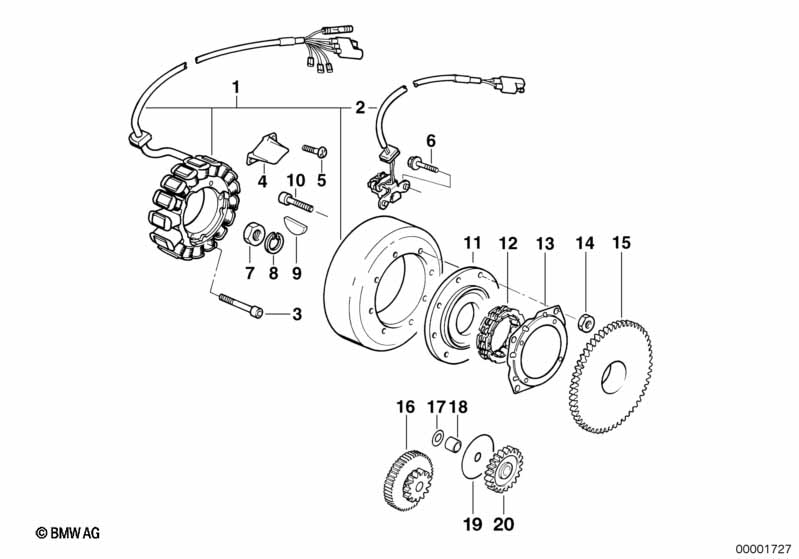

Alternator
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Magneto generator 1 12112343132 $701.87 +core
02 Pulse generator 1 12112343325 $165.64 +core
03 Oval-head screw with anti-rotation lock M6X35-8.8-ZNS3 3 07129904259 $2.51
04 Bracket inner 1 12112343135 $7.16 ENDED
05 Screw self-tapping M4X8 2 12112343133 $1.19
06 Screw self-tapping M5X16 2 11412343116 $0.87
07 Hex nut M22X1,5 1 12317700301 $5.44
08 Lock Ring 22 1 12112343250 $1.09
09 Woodruff key 4X5 1 11272343243 $2.25
10 Hex nut with ribs M6X16 8 12112343520 $1.93
11 Hub 1 12112343295 $247.00 +core
12 Free wheel 1 12112343296 $109.77 +core
13 Cover 1 12112343290 $11.29 ENDED
14 Hex nut M6-04-2-ZN 8 07119921054 $0.11
15 Free wheel 1 12117675940 $239.63 +core
16 Gear wheel 11/52 Z 1 12112343139 $137.20 +core
17 Stop disk 10,1X17X1 1 11412343107 $1.10
18 Spacer sleeve 10X13X13,7 1 12112343140 $3.49
19 Stop disk 10X58X1,5 1 11412343267 $3.93
20 Gear wheel Z=24 1 12112343138 $83.21 +core
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = the part has been discontinued (no longer available).
