R28 (R 850 R, R 1150 R, Rockster) R 1150 R 01 (0429,0439) Ignition system, double-ignition

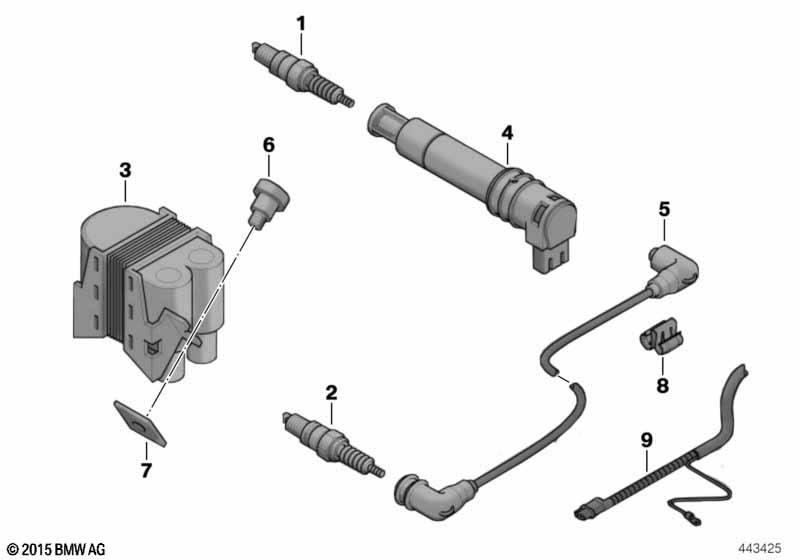

Ignition system, double-ignition
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i Observe the following for official-use
vehicles! Before ordering parts, please
check whether the vehicle has a single
or dual-ignition engine.
01 Spark plug NGK BKR7EKC 2 10/2002 12127653771 $12.18
Auxiliary Spark plug
02 Spark plug BOSCH YR6LDE 2 10/2002 12127681415 $15.00 +core
02 Spark plug NGK DCPR8EKC 2 10/2002 12127728634 +core
03 Ignition coil, double-ignition 1 10/2002 12137671712 $131.10 +core
04 Spark-plug shaft ignition coil 1 KOHM 2 10/2002 12137715853 $145.88 +core
05 Ignition tubing, double-Ignition 2 10/2002 12127686299 $53.56 +core
06 Screw 2 10/2002 12132306157 $2.71
07 Plate 1 10/2002 12132306158 $1.89
08 Cable clamp 1 10/2002 11117672167 $1.94
09 Repair kit, wiring harness 1 61127685348 $124.97
only applies to
-- Spark-plug shaft ignition coil 1 KOHM X 12137715853 $145.88 +core
Notes
  • +core = plus core charge (possibility of a return of the old part)
