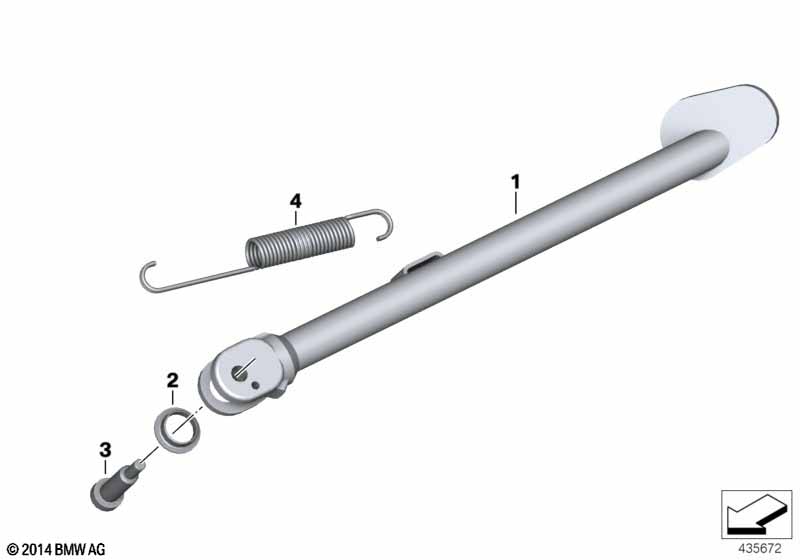

K26 (R 900 RT, R 1200 RT) R 1200 RT 10 (0430,0440) Side stand

Side stand
No. Description Supp. Qty  From   Up To  Part Number Price Notes
For vehicles with
Lowering

X499A=No
01 Side stand 1 46537675689 $176.17 +core
only applies to
-- Bump stop H=10 X 52537664664 $2.80
For vehicles with
Lowering

X499A=Yes
01 Side brace, short 1 46537711886 $176.17 +core
only applies to
-- Bump stop H=10 X 52537664664 $2.80
02 Collar bush 2 46537679105 $13.31 SI 24/2013
03 Side-support screw M10X1 1 46537707216
only applies to
-- Retainer 6 SP 220 X 46537708016
-- Lock Ring 6X0,7 X 07119903479 $0.81
-- Washer 6-200 X 07119904427 $0.21
04 Tension spring 1 46537681031 $18.60
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • SI = Service Information
