R 65, R 65 RT, R 80, R 80 RT (85-95) R 80 Spring strut, rear

Spring strut, rear

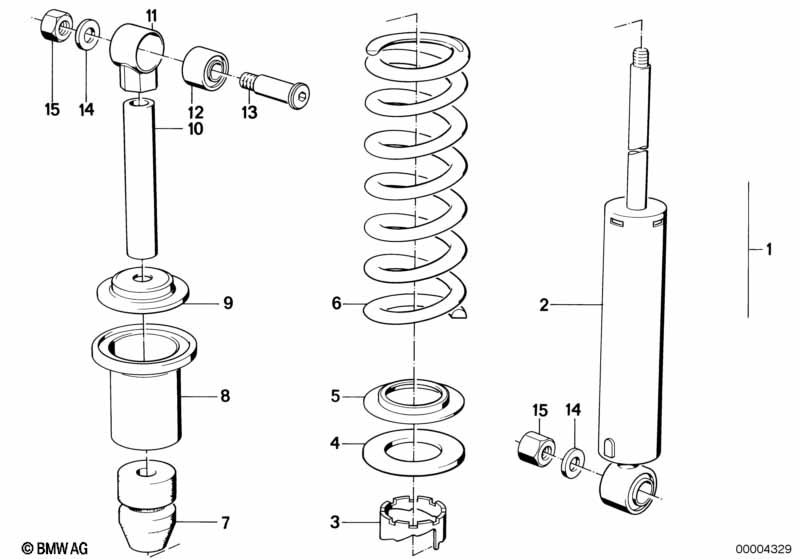

No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Spring strut, rear 1 33531452127 $685.68 +core
02 Shock absorber 1 33531452326 $362.05 +core
03 Ring 1 33531452234 $21.90
04 Spring pocket 1 33531452111
05 Centering ring 1 33531452350 $10.17
06 COIL SPRING 1 33531452346 +core
07 Spring 1 33531454233 $12.17 +core
08 Protection tube 1 33531452323 $9.92 ENDED
09 Spring pocket 1 33531454153
10 Spacer tube 1 33531452320
11 SHOCK RETAINER 1 33531452322 $36.56 ENDED
12 Rubber Mounting 2 33531452325 $38.45
13 Fit bolt 1 33531452122 $20.70
14 Washer 10,5 2 07119936401 $0.92 ENDED
14 Washer 10-200 ZNS3 2 07119904209 $1.16
15 Hex nut M10-8-ZNS 2 07119915558 $0.88
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = the part has been discontinued (no longer available).
