R 80 GS, R 100 GS, PD (90-95) R 100 GS PD Handlebar

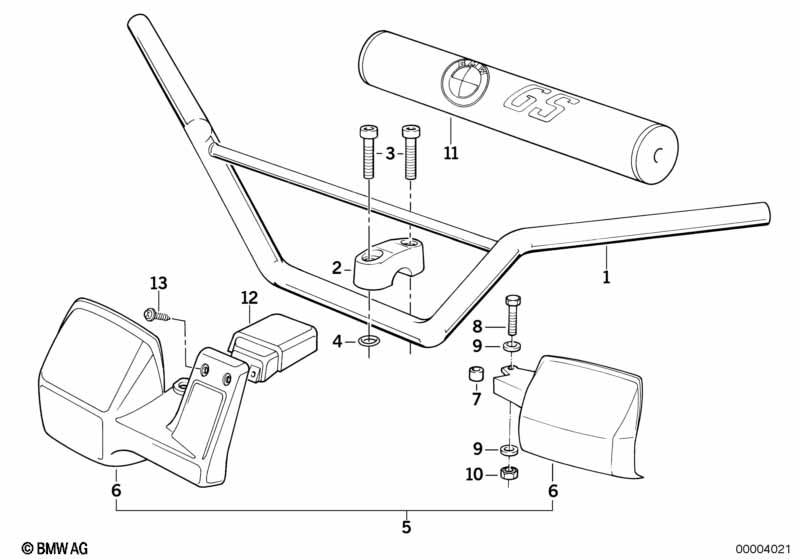

Handlebar
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Handlebar heated grip, black 1 32712303272 $208.44 +core
01 Handlebar heated grip, chrome 1 32712330665 $208.44 +core
02 Clamp support, black, upper 2 31421458055 $49.35
03 Fillister-head screw M8X35-8.8-SW 4 31422312034 $1.42
04 Ring 4 46711451942 $0.58
05 Retrofit kit, hand guard, white 1 71602315860 $58.75 ENDED
05 Retrofit kit, hand guard, black 1 71602315870 $58.75 ENDED
06 Hand guard, black, left 1 32712315711 $21.61
06 Hand guard, black, right 1 32712315712 $21.61
06 Hand guard, white, left 1 71602315701 $21.61
06 Hand guard, white, right 1 71602315702 $21.61
07 Bush 1 32712315706 $5.61
08 Hex bolt M5X30 1 07119913925 $1.74
09 Washer A5,3-140 HV-ZNS 1 12/1996 07119931029 $0.40 ENDED
09 Washer 10X5,3X1-200 HV 1 07119904206
09 Washer 5,3-140 HV-ZNS 1 07119936439 $0.40
10 Hex nut M5 ZNS 3 1 07119964653 $0.38 ENDED
10 Hex nut M5 1 07119905710 $2.83
11 Cover for handlebar crosstube, white 1 71602337064 $29.69 ENDED
11 Cover for handlebar crosstube, black 1 71602337065 $29.69 ENDED
12 Cover, white 1 71602315703 $7.75
12 Cover, black 1 71602315713 $7.75
13 Fillister head self-tapping screw ST4,2X9,5-Z1 2 07119907812 $0.38
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = the part has been discontinued (no longer available).
