K589 (K100, RS, RT, LT) K 100 83 (0501,0511) Starter 1-way clutch/reduct gear shaft

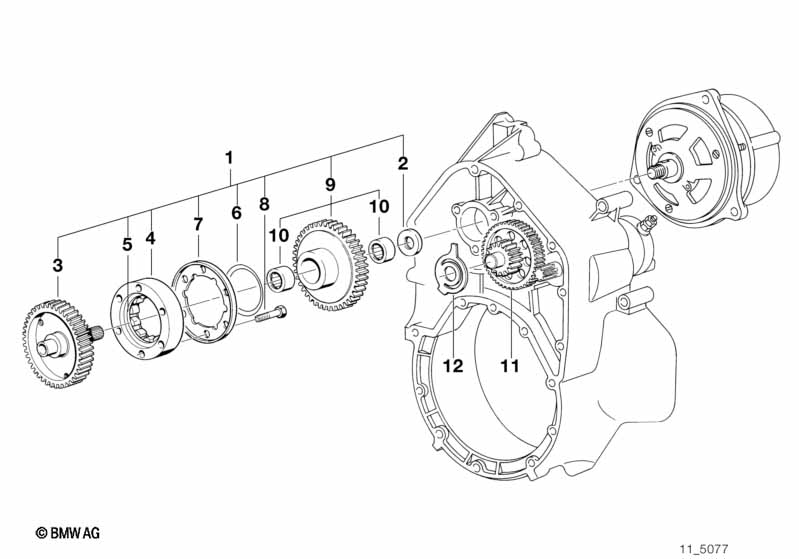

Starter 1-way clutch/reduct gear shaft
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i FG* K100 0 002 820 / K100 RS 0 010 051
01 Free wheel 1 11261461942 $296.93 +core
02 Shim 1 11261460730 $11.34
03 Auxiliary shaft 1 11/1989 11261461348 $206.33 ENDED, +core
03 Free wheel 1 11261461942 $296.93 +core
04 Ring 1 11261460967 $62.19 +core
05 FREE WHEEL CAGE 1 11261461570 $99.03 +core
06 DIAPHRAGM SPRING 1 11261460968 $3.94
07 Covering plate 1 11261460969 $5.31
08 Hex bolt M6X25 6 07119913589 $0.62
09 Gear wheel 1 11261460665 $108.15 +core
11 Countershaft 1 11261461831 $72.47 +core
12 Spring 1 11261460956 $4.50
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = the part has been discontinued (no longer available).
