K589 (K100, RS, RT, LT) K 100 RT 84 (0504,0505,0514) Output shaft

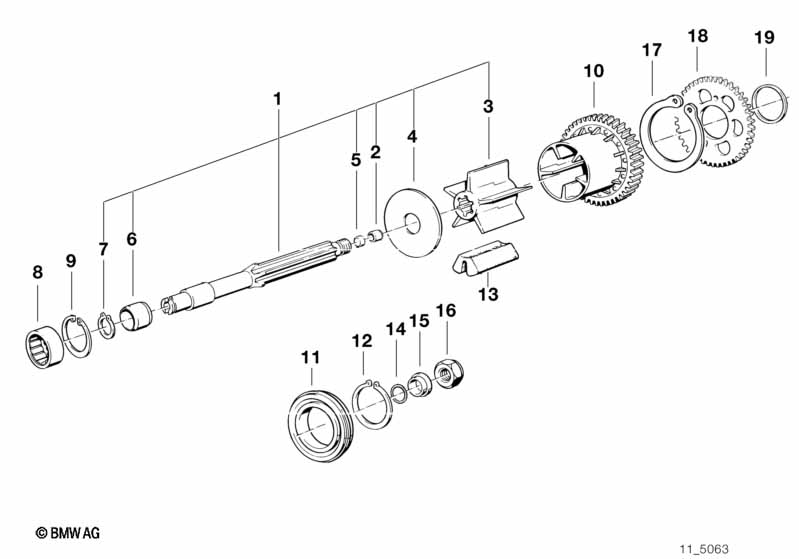

Output shaft
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Output shaft 1 11211461785 $360.25 +core
only in conjunction with
-- Idler 1 11211461498 $193.14 +core
-- Absorber gear wheel 1 11211461499 $534.86 +core
-- Absorber 5 11211461541 $13.30
-- Spring 1 11211464519 $22.12
02 Bush 6X12X12 1 11211461539 $14.61
03 Absorber 1 11211460883
04 Bracket 1 11211460356 $7.06
05 Cover lid D=12MM 1 07119937220 $1.84 ENDED
05 Cover lid D=12MM 1 07119906393
06 Inner bearing ring 22X26X2,0 1 11211460370 $40.54
07 Snap ring D=22MM 1 11211460373 $0.81
08 Needle bearing 26X34X16 1 11211460376 $17.48
09 Snap ring D=34MM 1 11211460379 $1.87
10 Absorber gear wheel 1 11211461499 $534.86 +core
only in conjunction with
-- Idler 1 11211461498 $193.14 +core
-- Absorber 5 11211461541 $13.30
-- Spring 1 11211464519 $22.12
11 Grooved ball bearing 83,5X50X16 1 11211465278 $103.35 +core
11 Grooved ball bearing 80X50X16 1 12/1985 11211460472 $45.76
FG* K100 0 008 126/K100RS 0 084
834/K100RT 0 027 983
FG* K100 USA 0 031 377/ K100RS USA 0
042 727
FG* K100RT USA 0 053 355
.
12 Lock Ring 50X2 1 12/1985 07119934250 $1.80
FG* K100 0 008 126/K100RS 0 084
834/K100RT 0 027 983
FG* K100 USA 0 031 377/ K100RS USA 0
042 727
FG* K100RT USA 0 053 355
.
12 Lock Ring 1 12/1985 11211461755 $2.61
FG* K100 0 008 126/K100RS 0 084
834/K100RT 0 027 983
FG* K100 USA 0 031 377/ K100RS USA 0
042 727
FG* K100RT USA 0 053 355
.
13 Absorber 5 11211461541 $13.30
13 Absorber 5 11211460231 $13.30
only applies to
-- Absorber gear wheel X 11211460903 $326.60 ENDED
14 O-ring 19X4 1 08/1983 11211460456 $1.67 ENDED
14 O-ring 19X4 1 11211460467
15 Compression ring 1 11211460696 $6.03
16 Hex nut M20X1,5 1 08/1983 11211460797 $12.16 ENDED
16 Hex nut M20X1,5 1 11211460673
17 Spring 1 08/1989 11211461532 $6.68 SI 1103185
18 Idler 1 08/1989 11211461753 $355.58 +core
19 Shim 1,60MM 1 08/1989 11211461742 $12.52
19 Shim 1,75MM 1 08/1989 11211461743 $12.52
19 Shim 1.90MM 1 08/1989 11211461744 $12.52
19 Shim 2,05MM 1 08/1989 11211461745 $12.52
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = the part has been discontinued (no longer available).
  • SI = Service Information
