K569 (K 75, K 75 c, K 75 s, K 75 RT) K 75 85 (0562,0571) Handlebar

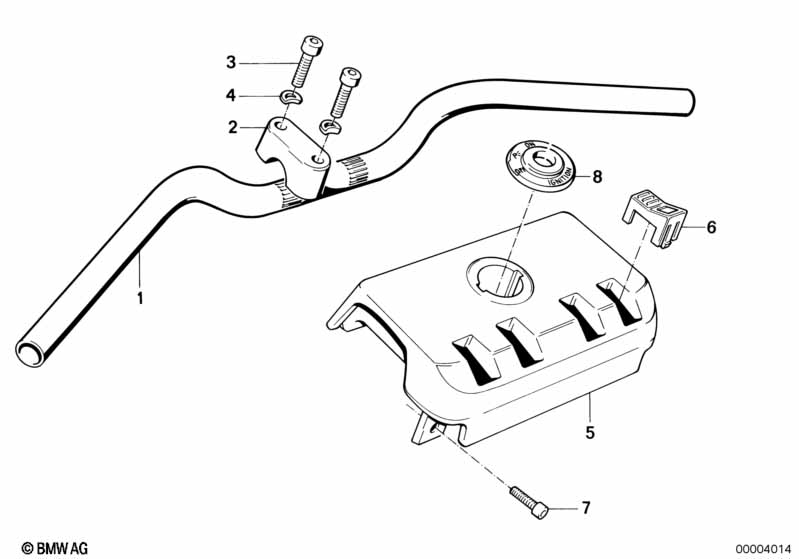

Handlebar
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Handlebar, chrome 1 32711456142 $214.68 +core
01 Handlebar, raised, heated grip, chrome 1 32711456143 $214.68 +core
01 Handlebar, black 1 32712303050 $214.68 +core
02 Clamping support, top 2 32711453159 $49.35
03 Fillister-head screw M8X40 4 07119901029 $0.96 ENDED
03 Fillister-head screw M8X40-8.8-ZNS3 4 07119902984 $1.93
04 WAVE WASHER 4 07119904115 $0.09
06 Covering cap 4 32711459318 $2.03
07 Fillister-head screw M6X10 2 07119919792 $2.29
08 STEP PLATE 1 61321459319 $6.67
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = the part has been discontinued (no longer available).
