K569 (K 75, K 75 c, K 75 s, K 75 RT) K 75 85 (0562,0571) Retrofit kit, heated handle

Retrofit kit, heated handle

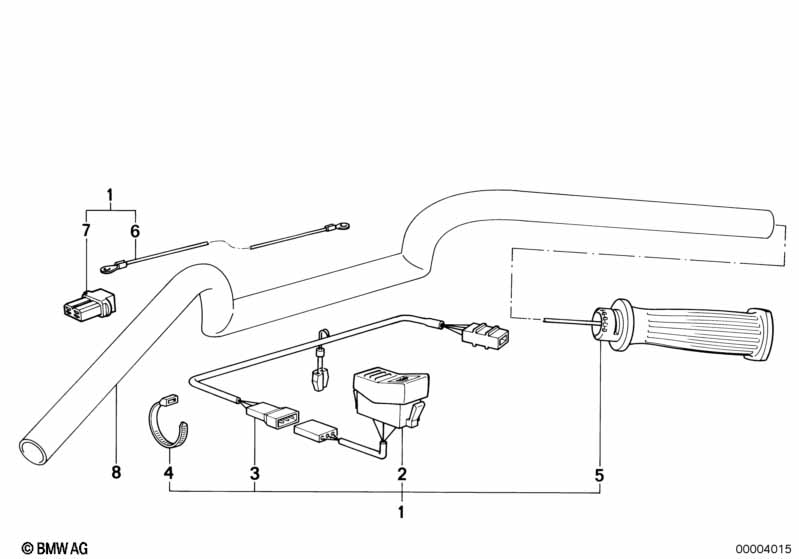

No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Retrofit kit, heated handle 1 61312300383 $284.34 +core
CONSISTING OF
For vehicles with
Heated handlebar grips

X519A=Yes
02 Switch, heated handlebar grips/htd seat L=700MM 1 61311459234 $51.46 +core
03 WIRING HEATED HANDLES 1 61121459263 $66.56
04 Cable tie L=200MM/B=3,6MM 5 61131367599 $0.43
05 Heated handle, left 1 61312300387 $127.14 +core
05 Heated handle, right 1 61312300388 $127.14 +core
06 Tubing 1 61122303023 $39.98 +core
07 Plug housing 4-POLIG 1 61131361706 $1.74
08 Handlebar, chrome 1 32711456142 $214.68 +core
08 Handlebar, raised, heated grip, chrome 1 32711456143 $214.68 +core
08 Handlebar heated grip, black 1 32712300085 $214.68 +core
08 Handlebar, raised, heated grip, black 1 32712303052 $214.68 +core
Notes
  • +core = plus core charge (possibility of a return of the old part)
