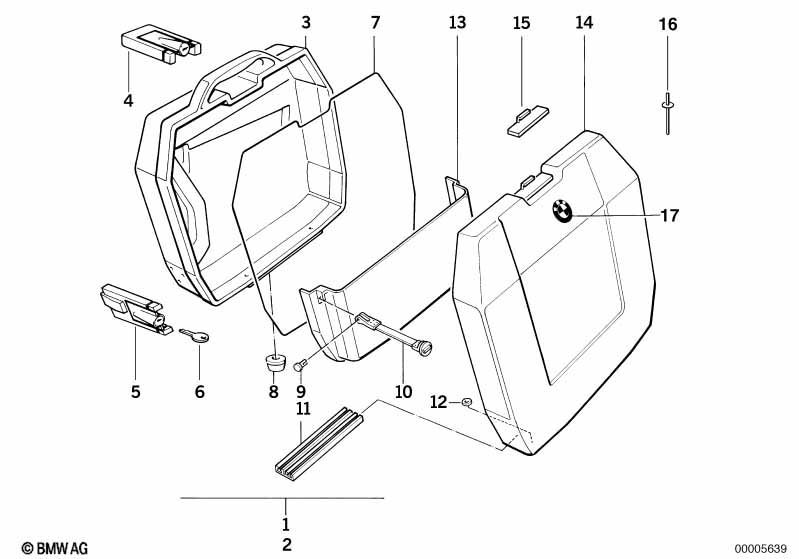

K569 (K 75, K 75 c, K 75 s, K 75 RT) K 75 85 (0562,0571) SET CITYCASE

SET CITYCASE
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 SET CITYCASE SCHWARZ 1 46542316585 ENDED, +core
01 SET CITYCASE WEISS 1 46542316657 ENDED, +core
02 CITYCASE LEFT SCHWARZ 1 46542316595 $286.74 +core
02 CITYCASE RIGHT SCHWARZ 1 46542316596 $286.74 ENDED, +core
02 CITYCASE LEFT WEISS 1 46542316655 ENDED, +core
02 CITYCASE RIGHT WEISS 1 46542316656 ENDED, +core
03 HOUSING BOTTOM LEFT 1 46542316683 $80.62 +core
03 HOUSING BOTTOM RIGHT 1 46542316684 $80.62 ENDED, +core
04 CASE CATCH 2 02/1988 46542303640 $36.84
05 CASE SUSPENSION CATCH 2 02/1988 46542303652 $36.84
07 Gasket 5X1560MM 2 46542300042 $7.21
08 Pad 2 46542300044 $8.31
09 Pin 2 51161828956 $0.48
10 Joint link 2 51161904471 $8.70
11 Hinge 2 46542300039 $6.65
12 Washer 3,7 6 07119936410 $0.40
14 Cover SCHWARZ 2 46542316682 $103.12 +core
14 Cover POLIZEIWEISS 2 46542316685 ENDED, +core
15 HOOK 2 46542303642 $12.80
16 SET OF BOTTOM PART RIVETS X 46542316691 $8.02
16 SET OF COVER RIVETS X 46542316692 $7.37 ENDED
17 Badge BMW 2 51142303355 $25.11
Notes
  • ENDED = the part has been discontinued (no longer available).
  • +core = plus core charge (possibility of a return of the old part)
