K569 (K 75, K 75 c, K 75 s, K 75 RT) K 75 85 (0562,0571) FUEL PUMP/FUEL FILTER

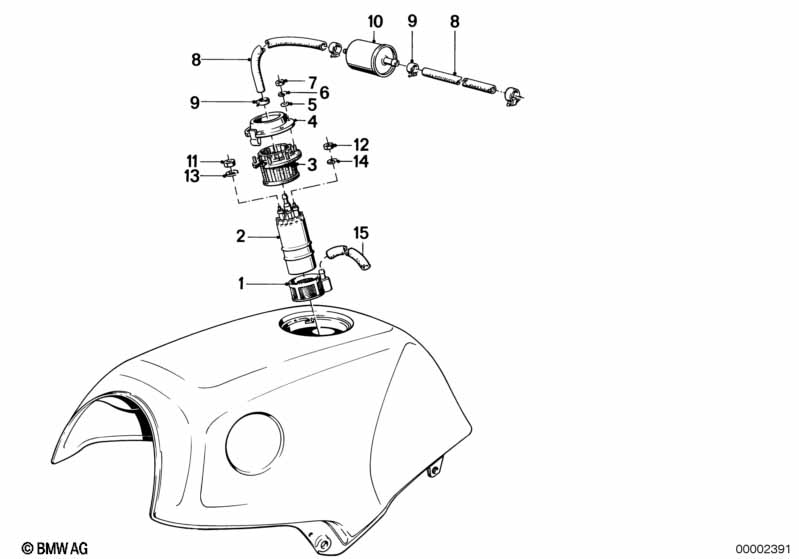

FUEL PUMP/FUEL FILTER
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Fuel filter 1 08/1990 16121455126 $21.02 +core
01 Fuel filter 1 08/1990 01/1993 16121455126 $21.02 +core
02 FUEL PUMP 1 08/1990 16121461576 $444.18 +core
02 FUEL PUMP 1 08/1990 01/1993 16121461576 $444.18 +core
For vehicles with
OFFICIAL VEHICLES

=Yes
02 FUEL PUMP 1 08/1990 06/1993 16121461580 $593.93 ENDED, +core
03 Vibration damper 1 08/1990 16121464628 $99.47 +core
03 Vibration damper 1 08/1990 01/1993 16121464628 $99.47 +core
04 Supporting ring 1 08/1990 16121464629 $5.84
04 Supporting ring 1 08/1990 01/1993 16121464629 $5.84
05 Washer 6 16121453214 $3.84
07 SELF-LOCKING HEX NUT M5 6 12/1996 07129964603 $0.16 ENDED
07 Hex nut M5-8-ZNNIV SI 6 07129904475 $0.25
08 Fuel hose 8X13 X 16121180040 $25.73
09 Hose clamp D=13 3 13311460928 $1.75
09 Hose clamp D=12MM - 13,5MM 1 17121461500 $2.54
10 Fuel filter 1 16142325859 $32.38
11 Hex nut M5 1 07119922038 $0.09
12 Hex nut M4 1 07119922028 $0.64
13 Spring washer B5 1 07119933060 $0.11
14 Spring washer B4 1 07119933034 $0.11
15 Hose 1000MM X 16131455350 $9.12
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = the part has been discontinued (no longer available).
