K75 (F 800 GS Adventure) F 800 GS Adve. (0B05, 0B15) Fuel tank/mounting parts

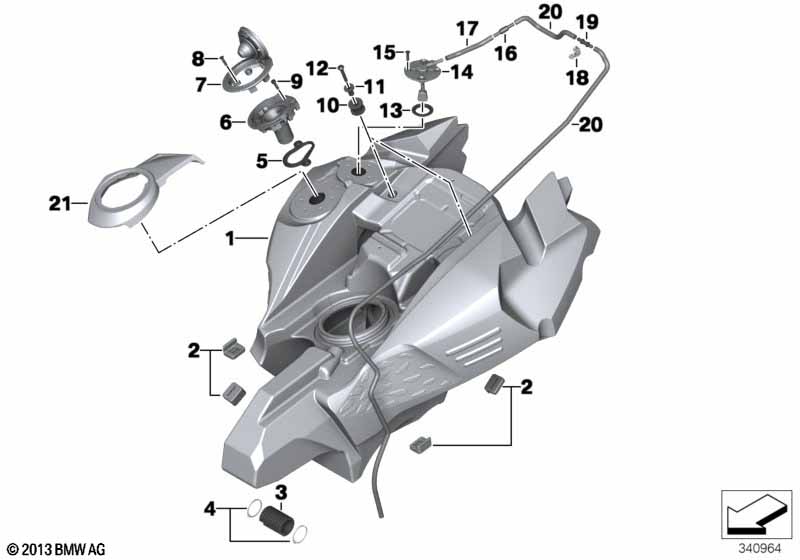

Fuel tank/mounting parts
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Fuel tank 1 16118530522
For vehicles with
Fuel tank US
or
National version Canada

X370A=Yes

Y732A=Yes
01 Fuel tank 1 16118530524
02 Tank guide, top 4 16117686771 $5.80
03 Rubber element 1 16117706736 $6.69
04 Cable tie L=203 B=2,5 2 46517659522 $0.60
05 Filler tube gasket 1 16117691509 $8.31
06 Filler tube 1 16117691505 $34.49
07 Tank lid 1 16117691502 $158.29 +core
08 Torx-countersunk head screw M5X20-8.8-ZNNID 4 07147237918
09 ISA screw M5X16-A2-70 3 07129903324 $1.40
10 Rubber grommet 2 16117692467 $4.63
11 Collar bush 20X10X20 2 16117701996 $9.99
12 Fillister head screw M6X40-A2-70 2 63127699141 $7.08
13 Gasket 1 16117691511 $3.84
14 Safety valve 1 16117691397 $64.04
15 Torx-countersunk head screw M5X20-8.8-ZNNID 4 07147237918
16 Connection piece 1 61661382908 $0.48
17 Hose running meter 4,5X9MM X 11747797115 $15.97
18 Cable strap with bracket L=200MM 1 61136918644 $0.92
19 Ventilation valve 1 16117721943 $19.84 +core
20 Hose running meter 4,5X9MM X 11747797115 $15.97
21 Tank cover trim 1 16118530527
Notes
  • +core = plus core charge (possibility of a return of the old part)
