3' E30 318i DISTRIBUTOR-SINGLE PARTS

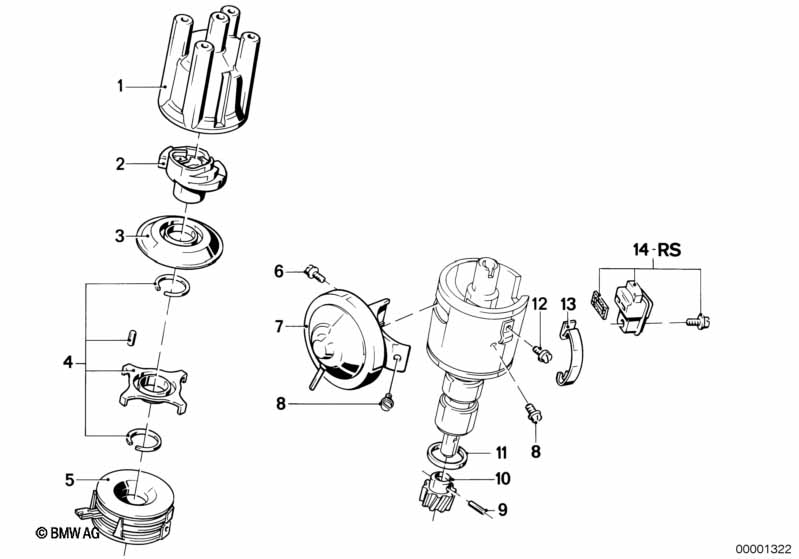

DISTRIBUTOR-SINGLE PARTS
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i Typ Nr.0 237 002 102 = 12 11 1 706 179
Typ Nr.0 237 002 096 = 12 11 1 289 845
Typ Nr.0 237 002 111 = 12 11 1 711 231
01 DISTRIBUTOR CAP 1 12111706113
02 Rotor 1 12111272144 $19.60
03 KIT DUST CAP 1 12111357227 $3.60
04 IMPULSE SENDING WHEEL 1 12111288436 $21.19 ENDED
05 Pulse generator 1 12111276127 $126.50 ENDED
06 Fillister-head screw 1 12111288447 ENDED
07 VACUUM REGULATOR 1 12111705915 $42.64
only applies to
-- Distributor X 12111706179 $392.50 ENDED
For vehicles with
without catalytic converter

S199A=No
07 VACUUM REGULATOR 1 12111288446 $30.12
only applies to
-- Distributor X 12111289845 $460.94
07 Vacumm box 1 12111715153 +core
only applies to
-- Distributor X 12111711231 $406.36
For vehicles with
without catalytic converter

S199A=Yes
07 VACUUM REGULATOR 1 12111705915 $42.64
only applies to
-- Distributor X 12111706179 $392.50 ENDED
08 Fillister-head screw 3 12111288448 ENDED
10 HELICAL GEAR WHEEL 1 12111272154 $46.36 ENDED
11 O-ring 1 12118530508 $1.67
12 Fillister-head screw 2 12111276115 $0.40 ENDED
13 Clip 2 12111276114 $1.93
13 SUPPORT SHACKLE 2 12119058411 $0.80
14 REPAIR KIT DISTRIBUTOR PARTS 1 12111705916 $4.53 ENDED
Notes
  • ENDED = the part has been discontinued (no longer available).
  • +core = plus core charge (possibility of a return of the old part)
