i3 I01 i3 60Ah Seat front seat coverings

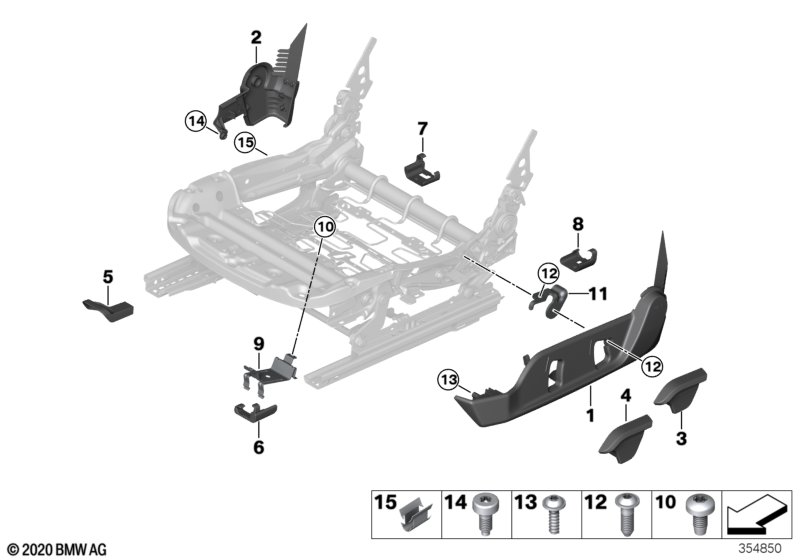

Seat front seat coverings
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Trim, seat outer left 1 52107304215
01 Trim, seat outer right 1 52107304216
02 Trim, seat inner left 1 52107304213
02 Trim, seat inner right 1 52107304214
03 Lever, backrest tilt adjustment, left 1 52107304219
03 Lever, backrest tilt adjustment, right 1 52107304220
04 Lever, seat height adjustment, left 1 52107304217
04 Lever, seat height adjustment, right 1 52107304218
05 Lever left 1 52107362117
05 Lever right 1 52107362118
06 Exterior left seat rail cover SCHWARZ 1 52107314013
06 Exterior right seat rail cover SCHWARZ 1 52107314014
07 Protective cap, seat rail, rear left 1 52107365219
08 Protective cap, seat rail, right rear 1 52107365220
For vehicles with
Seat heating driver/passenger

S494A=Yes
09 Bracket, control unit 2 52107240136
10 Fillister head screw M4X8 4 07147148547 $0.25
11 Retainer, trim cover, outer left 1 52107393677
11 Retainer, trim cover, outer right 1 52107393678
12 Socket head cap screw with shoulder M5 4 07147154925 $0.53
13 Fillister head screw with collar 2 07147187828 $0.38
14 Fillister head screw M6X12 2 07147144879 $0.65
15 Clamp for seat cover 2 52107395731
