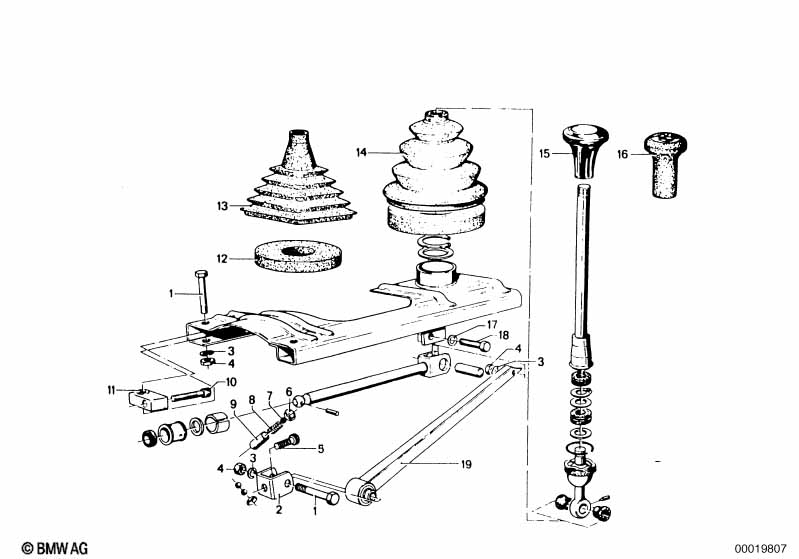

1502-2002tii 2002 Shift lever

Shift lever
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Hex bolt M8X35 3 07119913676 $0.36
02 Supporting bracket 1 23411466145 $7.38
03 Wave washer B8 4 07/1977 07119932095 $0.09 ENDED
03 Wave washer 4 07119904115 $0.09
04 Hex nut M8-8-ZNNIV SI 4 07119905515 $0.16
05 ISA screw M8X16-8.8-ZNS3 1 07129903984 $1.96
06 Cover lid D=12MM 4 07/1977 07119937220 $1.84 ENDED
06 Cover lid D=12MM 4 07119906393
07 Ball D=8MM III 5 07119986280 $0.66
08 Compression spring D=1,3MM 3 23111666227 $1.83
09 Bush 3 23311207056 $1.11
10 Fillister-head screw M10X35 2 07119919669 $0.88
11 Supporting bracket 2 25111208580 $20.64
12 Sound absorber 1 23411200937 $12.21
13 Rubber boot 1 25111206881 $25.79 ENDED
13 Rubber boot 1 25111206289
14 Rubber boot 1 25111100582 $25.79
15 Gear shift knob 5-GANG SPORT 1 23411666170 $127.63
16 Leather and plastic gear shift knob BMW LOGO 1 25111203074 $41.29
16 Gear shift knob, wood 1 25119056584 ENDED
17 Washer 8,4X16X1,6-ZNNV 1 07119907030
18 Hex bolt M8X16 1 07119913612 $0.62
19 Rod 1 25111201238 $34.59
Notes
  • ENDED = the part has been discontinued (no longer available).
