3' E21 318 Coil spring/guide support/attach.parts

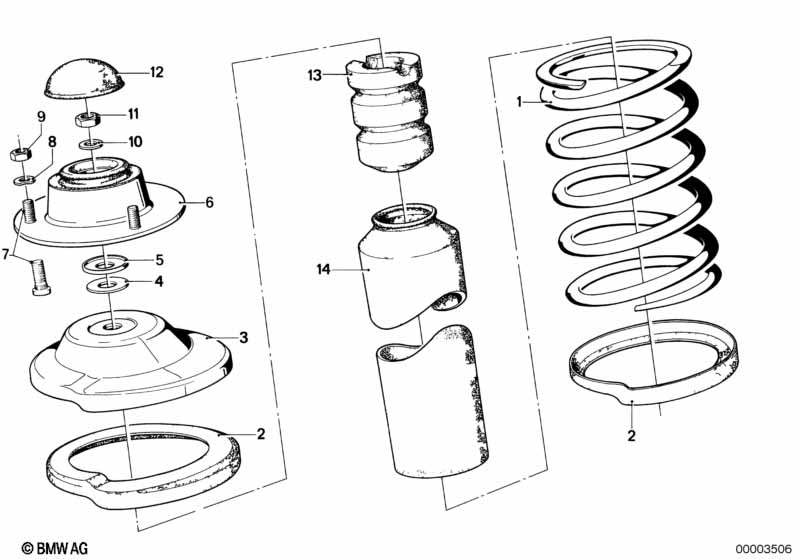

Coil spring/guide support/attach.parts
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Coil spring 2 08/1977 31331115479 $130.57
01 Coil spring MOTORSPORT 2 08/1977 31332204361 ENDED
01 Coil spring MOTORSPORT 2 08/1977 31339055854
02 Spring pad 4 08/1977 31331100636 $13.07
ONLY APPLIES TO COIL SPRING RED
02 Spring pad 2 08/1977 31331100636 $13.07
03 Upper spring plate 2 08/1977 31331109445 $57.98
04 Washer 37X2,5MM 2 08/1977 31331116983 $0.29 ENDED
04 Washer 37X2,5MM ZNS3 2 08/1977 31336776760 $0.87
05 Dust protection collar 2 08/1977 31331110196 $1.84
06 Guide support M8X18 2 08/1977 31331110195 $91.76
07 Pin M8X18 ZNS 6 08/1977 31331092886 $1.17 ENDED
07 Pin M8X18 ZNS3 6 08/1977 31336765744 $1.17
07 Pin 6 08/1977 31331138102 $1.18 ENDED
08 Wave washer B8 6 08/1977 07119932095 $0.09 ENDED
08 Wave washer 6 08/1977 07119904115 $0.09
09 Hex nut M8-ZNS 6 08/1977 07119922856 $0.56 ENDED
09 Hex nut M8-8-ZNS3 6 08/1977 07119904032 $0.16
09 Hex nut M8-8-ZNNIV SI 6 08/1977 07119905515 $0.16
10 Washer 2 08/1977 31331118040 ENDED
11 Self-locking hex nut M12X1,5 2 08/1977 31311136641 $0.54 ENDED
11 Self-locking hex nut M12X1,5 05 2 08/1977 32211095267 $0.69 ENDED
11 Self-locking hex nut M12X1.5-05 ZNS3 2 08/1977 32216769539 $0.83
12 Kit dust cap 2 08/1977 31331114722 $0.88
13 Absorber 2 08/1977 31331116098 $17.82
14 Protection tube 2 08/1977 31331116165 $7.64
Notes
  • ENDED = the part has been discontinued (no longer available).
