5' E12 528i Cooling System Water Hoses

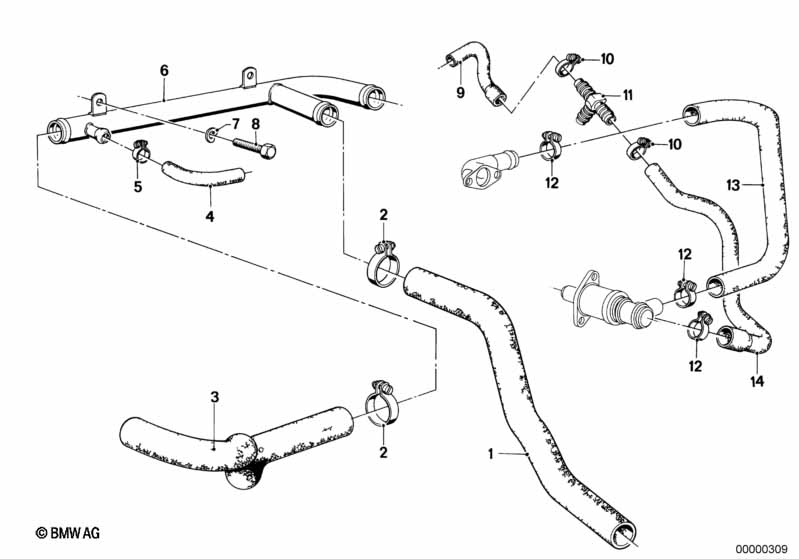

Cooling System Water Hoses
No. Description Supp. Qty  From   Up To  Part Number Price Notes
For vehicles with
National version Australia
and
Sweden version

L810A=Yes

=Yes
01 Hose 1 11531266115 $21.82
02 Hose clamp L28-33 4 07129952113 $0.96
03 Hose 1 11531266137 $25.47
04 Hose 1 11531266476 $10.83
05 Hose clamp L12-15 2 07129952104 $1.18
06 Return pipe 1 11531261156 $155.69 ENDED
07 WAVE WASHER B6 2 07119932099 $0.38
07 WAVE WASHER B6-ZNS3 2 07119904496 $1.78 ENDED
08 Hex bolt M6X12 2 07119913442 $0.25 ENDED
08 Hex bolt M6X12-8.8-ZNNIV 2 07119905524 $0.27
09 Hose 1 11611261816 $16.15
10 Hose clamp L18-24 3 07129952109 $1.07
11 DISTRIBUTION PIECE 1 11611261818 $1.62 ENDED
12 Hose clamp L16-30 3 64218367179 $1.07
13 Hose 1 11611259414 $25.24
14 Hose 1 11611261204 $10.25
Notes
  • ENDED = the part has been discontinued (no longer available).
