5' E12 528i Intake manifold system

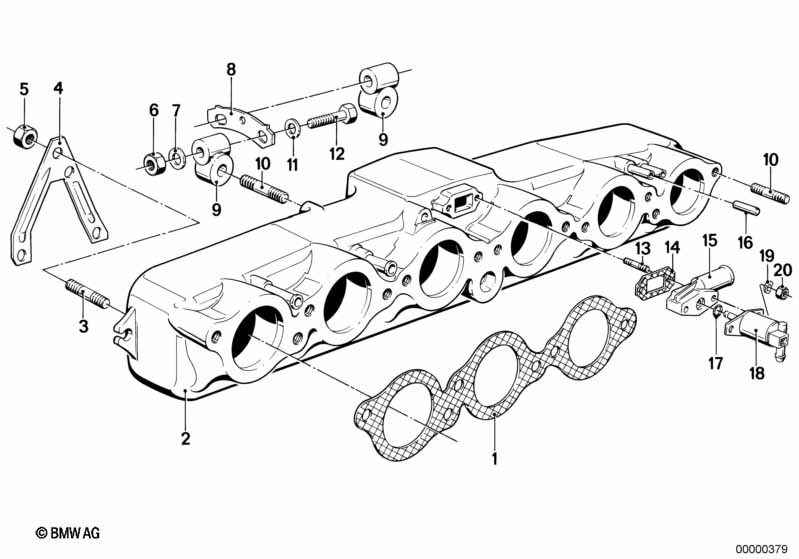

Intake manifold system
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Gasket Asbestos Free 2 11611730744 $4.55
02 AIR ACCUMULATOR 1 11611270187 $344.84 ENDED
For vehicles with
National version Australia
and
Sweden version

L810A=Yes

=Yes
02 AIR ACCUMULATOR 1 09/1978 11611270188 ENDED
03 Stud bolt M8X28 2 07129908147 $0.47
04 Holder 2 11611256448 $1.75 ENDED
05 Hex nut wiht flange M8 2 11611713432 $0.43
10 Stud bolt M8X40-ZN X 07129908133 $0.30 ENDED
10 Stud bolt M8X40 X 07129903964
13 Stud bolt M6X45 2 07129908105 $0.82
14 Gasket Asbestos Free 1 11611730741 $0.85 ENDED
15 CONNECTION FLANGE 1 11611259412 $17.02
16 Cap D=3,5MM 1 13541261472 $1.03 ENDED
16 Cap D=3,5MM 1 11611437560 $3.39
16 Cap D=5,0MM 1 13541265862 $0.40 ENDED
16 Cap D=5,0MM 1 11611437610 $0.43 ENDED
16 Cap D=5,0MM 1 11611437694 $3.39
For vehicles with
Sweden version

=Yes
16 Cap D=9,0MM 1 11611270798 ENDED
17 O-ring 6.5X2.0 1 11611254062 $1.33 ENDED
17 O-ring 6,3X2,4 1 07119903045 $1.67
18 STARTER VALVE 1 13641358917 $106.30
19 WAVE WASHER B6 2 07119932099 $0.38
19 WAVE WASHER B6-ZNS3 2 07119904496 $1.78 ENDED
20 Hex nut M6 2 08/1996 23112322368 $0.38 ENDED
20 Hex nut M6-8-ZNS 2 07119922832 $0.37 ENDED
20 Hex nut M6-8-ZNNIV SI 2 07119905543 $0.38
Notes
  • ENDED = the part has been discontinued (no longer available).
