5' E12 528i Exhaust manifold

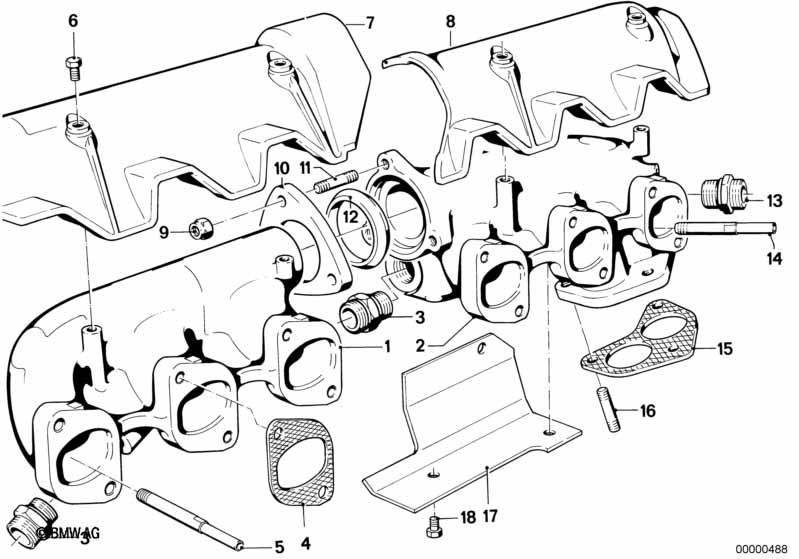

Exhaust manifold
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i For vehicles with
National version Australia

L810A=Yes
01 Exhaust manifold, front 1 09/1978 11751266985 ENDED
02 Exhaust manifold, rear 1 09/1978 11751267855 $398.41 ENDED
03 THREADED PIPE JOINT 2 09/1978 11751261519 $22.57
04 Gasket Asbestos Free 6 09/1978 11621723851 $5.70
05 AIR FEED-IN PIPE 5 09/1978 11751266987 ENDED
06 Hex bolt M6X16 4 09/1978 07119913460 ENDED
08 Covering plate 1 09/1978 11621251426 ENDED
09 Hex nut wiht flange M8 3 09/1978 07/1981 11621711954 $0.60 ENDED
09 Hex nut wiht flange M8 3 09/1978 18307620549
10 Flange 1 09/1978 11621251423 $18.94
11 Stud bolt M8X40 3 09/1978 07129908139 $0.88
12 GASKET RING ASBESTO-FREE 1 09/1978 11621723889 $14.68
13 THREADED PIPE JOINT 1 09/1978 11711266853 $5.13 ENDED
14 AIR FEED-IN PIPE 1 09/1978 11751267859 $12.28 ENDED
15 Gasket Asbestos Free 1 09/1978 18111728363 $17.87
16 Stud bolt M10X35 3 09/1978 11621711671 $3.05
17 Heat resistant plate 1 09/1978 11751268952 ENDED
18 Hex bolt M6X10 3 09/1978 07119913423 $0.47 ENDED
18 Hex bolt M6X10-8.8-ZNS3 3 09/1978 07119904633 $0.20
Notes
  • ENDED = the part has been discontinued (no longer available).
