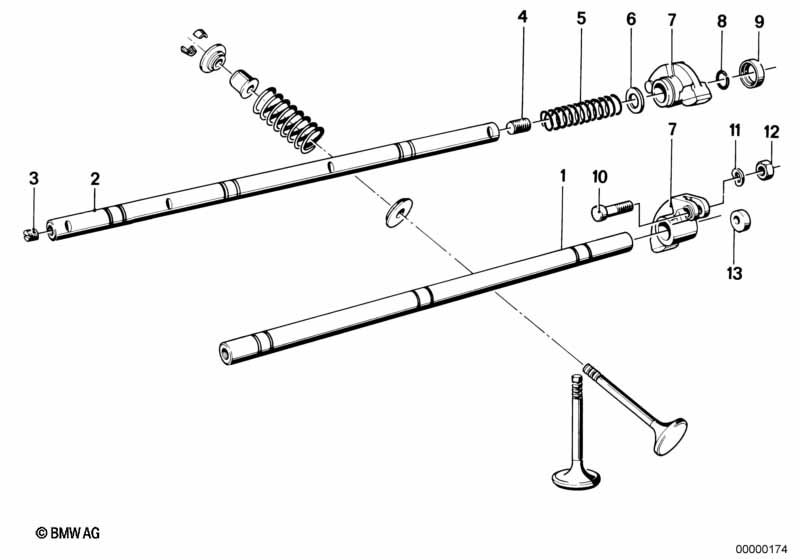

5' E12 528i Timimg gear - rocker arm/valves

Timimg gear - rocker arm/valves
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 ROCKER ARM SHAFT INTAKE REAR 1 11331274929 $81.32
01 ROCKER ARM SHAFT INTAKE FRONT 1 11331274963 $81.32
02 ROCKER ARM SHAFT EXHAUST REAR 1 11331274947 $81.32 +core
02 ROCKER ARM SHAFT EXHAUST FRONT 1 11331274959 $81.32
03 Plug 4 11331266400 $5.48
03 Screw plug M12X1 4 11331274923 $1.62
04 Plug 4 11331266400 $5.48
05 Compression spring X 11330634125 $1.07
06 Washer X 11330634140 $1.85
07 Rocker arm X 11331271833 $55.08
08 Spring washer X 11330634135 $0.30
09 INTERM.RING X 11330634130 $1.43 ENDED
09 INTERM.RING X 11331744353
10 Screw X 11331744355 $2.03
11 Washer X 11331258327 $0.10
12 Hex nut M6 X 11331744333 $0.28
13 ECCENTRIC X 11331744354 $4.92
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = the part has been discontinued (no longer available).
