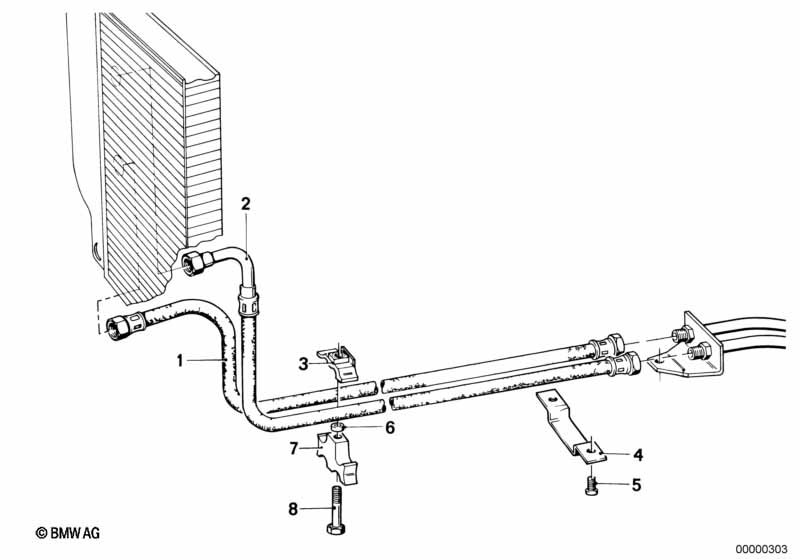

5' E12 528i TRANSMISSION OIL COOLING

TRANSMISSION OIL COOLING
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 OIL COOLING PIPE 1 09/1979 17221121952 $91.08
01 OIL COOLING PIPE 1 09/1979 17221115747 $57.75
02 OIL COOLING PIPE 1 09/1979 17221121951 $101.53
02 OIL COOLING PIPE 1 09/1979 17221115763 $67.47
03 Hose clamp 1 09/1979 17221121949 $1.90 ENDED
03 Hose clamp 1 09/1979 17221108417 $0.97
04 Fixing clamp 1 09/1979 17221121947 ENDED
04 Fixing clamp 2X22 1 09/1979 07119977519 ENDED
05 SELF TAPPING SCREW AM6X12 2 07119918412 $0.30
06 Washer 1 11410752144 ENDED
07 Base 1 09/1979 17221121948 $2.02 ENDED
07 BRACKET OIL PIPE 1 09/1979 17221108416 $1.70
08 Hex bolt M6X50 1 09/1979 07119912337 $0.91 ENDED
08 Hex bolt M6X50 8.8 ZNS3 1 09/1979 07119902993 $0.59
08 Hex bolt M6X45 1 09/1979 07/1981 07119912327 $0.22 ENDED
Notes
  • ENDED = the part has been discontinued (no longer available).
