3' F31 320d Rear brake / brake pad / wear sensor

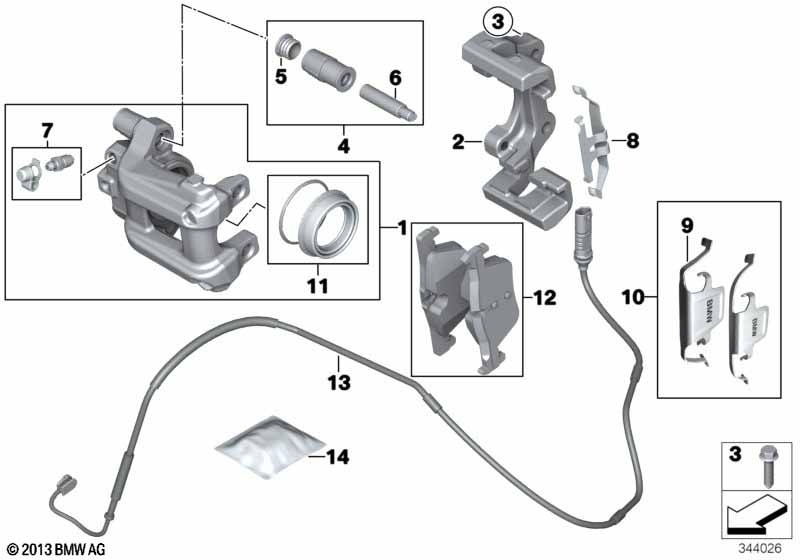

Rear brake / brake pad / wear sensor
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i For vehicles with
M Sport brakes

S2NHA=No
01 Caliper housing left 1 34216850857
01 Caliper housing right 1 34216850858
02 Calliper carrier 2 34216850860
03 Hex screw with collar M12X1,5X32 ZNS3 4 34206850536
04 Repair kit guide bush 2 34412354195
05 Protective plug 4 34106790925
06 Guiding bolt 4 34106790926
07 Repair kit ventilation valve 2 34116852852
08 Clip 2 34216850853
Retrofit kit BMW Design retaining
springs
10 BMW Design retaining springs 1 34112359855
11 Repair set brake caliper 2 34216850859
12 Repair kit, brake pads asbestos-free 1 07/2014 34216850569 ENDED
The following additional parts are
also essential:
- brake pad sensor
- brake pad paste
The following recommendation applies
to vehicles more than 48 months old:
- Replace retaining spring
refer to Repair Manual!
12 Repair kit, brake pads asbestos-free 1 34216873093
The following additional parts are
also essential:
- brake pad sensor
- brake pad paste
The following recommendation applies
to vehicles more than 48 months old:
- Replace retaining spring
refer to Repair Manual!
For vehicles with
National version Korea

L802A=Yes
12 Repair kit, brake pads asbestos-free 1 07/2014 34206799809 ENDED
The following additional parts are
also essential:
- brake pad sensor
- brake pad paste
The following recommendation applies
to vehicles more than 48 months old:
- Replace retaining spring
refer to Repair Manual!
12 Repair kit, brake pads asbestos-free 1 34206873094
The following additional parts are
also essential:
- brake pad sensor
- brake pad paste
The following recommendation applies
to vehicles more than 48 months old:
- Replace retaining spring
refer to Repair Manual!
For vehicles with
National version Korea
and
Reinforced brakes

L802A=No

S102A=No
12 Repair kit, brake pads asbestos-free 1 34216850569 ENDED
The following additional parts are
also essential:
- brake pad sensor
- brake pad paste
The following recommendation applies
to vehicles more than 48 months old:
- Replace retaining spring
refer to Repair Manual!
12 Repair kit, brake pads asbestos-free 1 34216873093
The following additional parts are
also essential:
- brake pad sensor
- brake pad paste
The following recommendation applies
to vehicles more than 48 months old:
- Replace retaining spring
refer to Repair Manual!
12 Repair kit, brake pads asbestos-free 1 34216873093
The following additional parts are
also essential:
- brake pad sensor
- brake pad paste
The following recommendation applies
to vehicles more than 48 months old:
- Replace retaining spring
refer to Repair Manual!
For vehicles with
National version japan
and
Reinforced brakes

L807A=No

S102A=No
12 Repair kit, brake pads asbestos-free 1 34216850569 ENDED
The following additional parts are
also essential:
- brake pad sensor
- brake pad paste
The following recommendation applies
to vehicles more than 48 months old:
- Replace retaining spring
refer to Repair Manual!
13 Brake pad wear sensor, rear 1 34356792292
14 Brake pad paste 3G 2 83192158851
Notes
  • ENDED = the part has been discontinued (no longer available).
