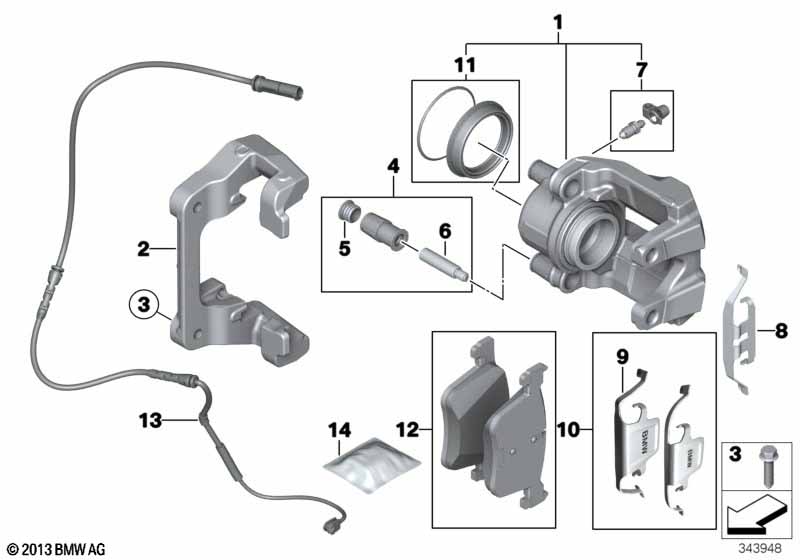

3' F31 320d Front brake pad wear sensor

Front brake pad wear sensor
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i For vehicles with
M Sport brakes

S2NHA=No
01 Caliper housing left 1 34116857687
01 Caliper housing right 1 34116857688
02 Calliper carrier 2 34116850971
03 Hex bolt M12X1,5X43 ZNS3 4 34116772117 $1.88 ENDED
03 Torx screw with washer M12X1,5X43 ZNS3 4 34106864424
Note: Install on both sides
04 Repair kit guide bush 2 34412354195
05 Protective plug 4 34106790925
06 Guiding bolt 4 34106790926
07 Repair kit ventilation valve 2 34116852852
08 Clip 2 34106790927
10 BMW Design retaining springs 1 34112359855
Retrofit kit BMW Design retaining
springs
11 Repair set brake caliper 2 34106790928
12 Repair kit, brake pads asbestos-free 1 34106859181
The following additional parts are
also essential:
- brake pad sensor
- brake pad paste
The following recommendation applies
to vehicles more than 48 months old:
- Replace retaining spring
refer to Repair Manual!
13 Brake pad wear sensor, front left 1 34356792289
14 Brake pad paste 3G 2 83192158851
Notes
  • ENDED = the part has been discontinued (no longer available).
