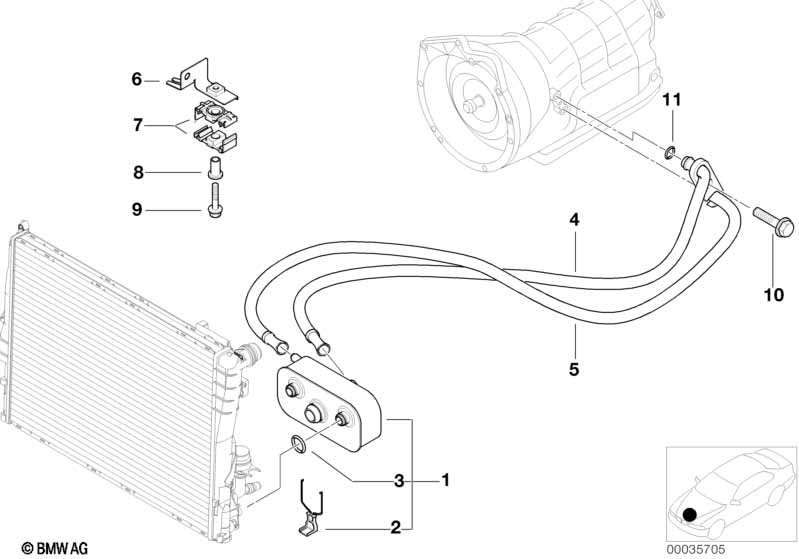

3' E46 318i Oil cooling, automatic gearbox A5S ...R

Oil cooling, automatic gearbox A5S ...R
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Heat exchanger 1 17227505826 $185.93
02 Clamp 1 17221707786 $3.77
03 O-ring 14,5X2,5 2 17111711987 $1.73
04 OIL COOLING PIPE INLET A5S 390R 1 17227577673 $110.18 +core
05 OIL COOLING PIPE OUTLET A5S 390R 1 17227577674 +core
06 Holder with deflection pulley 1 09/2001 11287511474 $44.08
07 BRACKET OIL PIPE 2 17201712210 $1.02
08 Spacer sleeve D6 1 17227798686 $3.32
09 Hex bolt with washer M6X30-U2-ZNS3 1 07119903994 $0.65
10 Screw M8X28-Z3 1 17227555715 $0.78
11 O-ring 10,82X1,78/FPM 2 17211742636 $0.80
Notes
  • +core = plus core charge (possibility of a return of the old part)
